ANTENNAS >>EXCELLENT UHF ANTENNAS
SPECIAL ANTENNA 0 dB GAIN 430 MHz
AN-450
Model: AN-450
Price: call

This antenna is a perfect match for our video transmitters / receivers SPX/M series. It will cover frequency range from 400- 480 MHz
Dimensions : 2.5 " X 0.5 "

MORE INFO
TEST RECORD
CONTACT




SPECIAL ANTENNA 0 dB GAIN 500 MHz
AN-500
Model: AN-500
Price: call

This antenna is a perfect match for our video transmitters / receivers SPX/M series. It will cover frequency range from 500- 650 MHz.
Dimensions: 2.2 " X 0.5 ".

MORE INFO
CONTACT






SPECIAL ANTENNA 0 dB GAIN 700 MHz
AN-700
Model: AN-700
Price: call

This antenna is a perfect match for our video transmitters / receivers SPX/M series. It will cover frequency range from 700- 860 MHz.
Dimensions: 1.0 " X 0.5 ".

MORE INFO
CONTACT






UNIVERSAL TV ANTENNA FOR RECEIVERS

Model: AN-TV
Price: call

This antenna is a perfect match for our video receivers series. It covers frequency range from 470- 1000 MHz. This antenna has a male F-TV connector (standard TV-type connector)
Dimensions: 4.5" X 0.5 ".

MORE INFO
CONTACT






SPECIAL ANTENNA 2.0 dB GAIN 470 - 860 MHz
AN-500
Model: AN-4786
Price: call

This antenna is a perfect match for our video transmitters / receivers GX/M series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Connector type: BNC male.
Dimensions: 5.5 " X 0.5 ". Gain 2.0 dB

MORE INFO
TEST RECORD
CONTACT






SPECIAL ANTENNA 2.4 dB GAIN 470 - 860 MHz
AN-500
Model: AN-4786H
Price: call

This new antenna design is a perfect match for our video transmitters / receivers GX/M series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Connector type: BNC male, Gain 2.4 dB
Dimensions: 6.5 " X 0.5 ".

MORE INFO
TEST RECORD
CONTACT






SPECIAL UHF ANTENNA 2.8 dB GAIN 470 - 860 MHz
AN-500
Model: AN-4786HD
Price: call

This antenna is the best and a perfect match for our video transmitters / receivers GX/M series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Connector type: BNC, Gain 2.8 dB. This antenna is highly recommended for HD transmitters UHF.
Dimensions: 8.2 " X 0.5 ".

MORE INFO
TEST RECORD
CONTACT






SPECIAL ANTENNA 1.8 dB GAIN 470 - 860 MHz
ASM-4786
Model: ASM-4786S
Price: call

This antenna is a perfect match for our video transmitters IGX series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Gain 1.8 dB. Connector type: SMA male.
Dimensions: 4.5 " X 0.35 ".

MORE INFO
TEST RECORD
CONTACT






SPECIAL ANTENNA 1.8 dB GAIN 650 - 700 MHz
AN-6570
Model: AN-6570
Price: call

This antenna is a perfect match for our video or audio transmitters in UHF range from 650-700 MHz. Gain is 1.8 dB. Connector type: SMA male. The antenna has a swivel.
Dimensions: 5.1 " X 0.35 ".

MORE INFO
TEST RECORD
CONTACT






LONG DISTANCE UHF ANTENNA 4 dB GAIN 470-860 MHz
AN-500
Model: TN-4786
Price: call

This antenna is a long distance UHF option excellent for Video transmitters and receivers from 470-860 MHz for our video transmitters / receivers GX/SPX/M series. (UHF TV band, channels 14 - 69).
Dimensions: 12.2 " X 0.5 ".

MORE INFO
TEST RECORD
CONTACT






WHITE SPACE RADIO OMNI-DIRECTIONAL ANTENNA 3 dB GAIN
LT-860
Model: AD-4786
Price: call

This omni-directional antenna is a perfect match for TV transmitters in UHF band. This antenna covers frequency range from 470 MHz - 860 MHz.AD-4786 antenna has 3 dB gain over the band and 50 ohms impedance. It comes with an integral N-connector. It is a perfect antenna for White Space Radio applications.
Dimensions: 20 " X 1.0 ".

MORE INFO
TEST RECORD
CONTACT

ADH-4776 AD-24SH Optional Mounting Bracket
Model: BRCK02
Price: $25.00 USD


PROFESSIONAL uHF LOG-PERIODIC ANTENNA 8 dB FROM 470-860 MHz, 300 W MIL VERSION
LOG4786/200
Model: LOG-4786/200
Price: call
Commercial version
Price: call
Military version

This directional antenna is a perfect match for TV UHF transmitters. Operating Frequency: 470-860 MHz. Maximum power 300 W, Gain 8 dB, impedance 50 ohms.

MORE INFO
TV CHANNELS LIST
CONTACT






WHITE SPACE RADIO OMNI-DIRECTIONAL ANTENNA 6 dB GAIN
LT-860
Model: ADH-4776
Price: call

This omni-directional antenna is a perfect match for UHF Broadcast TV transmitters or receivers. It covers the frequency range from 470-760 MHz. This antennas has 5.8 dB gain and 50 ohms impedance. It is a perfect antenna for White Space Radio applications.
Dimensions: 39.5 " X 1.0".

MORE INFO
TEST RECORD
CONTACT

ADH-4776 AD-24SH Optional Mounting Bracket
Model: BRCK02
Price: call
    in stock


PROFESSIONAL UHF TV SHARK FIN ANTENNA 9 dB GAIN

LT-860
Model: LT-860
Price: call
Antenna LT-860/N
with N type connector

Price: call
Mounting bracket is not included for this type of antennas

Shark fin antenna LT-860 will give you an extended range and 9.0 dB gain in 470 MHz - 860 MHz band. This antenna can be used for both- transmitters and receivers. LT-860 is also recommended for wireless microphone receivers. Dimension of this antenna is 11" X 10 " X 0.1 ". Antenna LT-860 has an BNC connector. LT-860 with a N-connector is available upon request.
Dimensions: 11 " X 10 " X 0.1 ".

MORE INFO
TEST RECORD
TEST RECORD PUBLIC SAFTY APPLICATION 470.512 MHz
CONTACT






EXCELLENT SMALL 430 mHz - 470 mHz ANTENNA
MT-440M
Model: MT-440M
Price: call

This very compact mobile-mount omni antenna provides broad coverage and 3 dBi gain. It is ideally suited for PCS applications where omni-directional coverage and low visibility are desired.
Dimensions: 18.8 " including base .

MORE INFO
CONTACT








PROFESSIONAL UHF TV MOBILE ANTENNA 3.0 dB GAIN
LT-860
Model: MB-4070
Price: call

Omni directional magnet mount antenna MB-4070 will give you an extended range and 3.0 dB gain in 470 MHz - 700 MHz band. This antenna can be used for both- transmitters and receivers. MB-4070 is also recommended for wireless microphone receivers. Dimension of this antenna is 25" X 0.1 " ( Base 4.7" ). Antenna MB-4070 has an BNC connector.MB-4070 with a N-connector is available upon request.

MORE INFO
CONTACT


MOBILE UHF TV OMNI DIRECTIONAL ANTENNA 2.15 dB GAIN
MT-4786
Model: MT-4786
Price: call

Omni directional magnet mount antenna MT-4786 will give you an extended range and 2.15 dB gain in 470 MHz - 860 MHz band. This antenna can be used for both- transmitters and receivers. MT-4786 is also recommended for wireless microphone receivers and transmitters. Dimension of this antenna is 0.25" X 6.6" (Base 1.1"). Antenna MT-4786 has an BNC connector.

MORE INFO
CONTACT

PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN FULL UHF RANGE FROM 470-860 MHz
TL-500
Model: PN-4786
Price: call

TV UHF range 550-860 MHz
N connector
Mounting bracket included
Max power 100 W
50 ohms impedance
Flat gain 9 dB
Excellent VSWR <1.25
Max wind load 100 km/h
Vertical or horizontal polarization

Size: 10" x 10" x 2.5"


MORE INFO
CONTACT
PROFESSIONAL UHF TV PANEL ANTENNA 9.5 dB GAIN
TL-500
Model: TL-500
Price: call

TV UHF range 470-660 MHz
N connector
Mounting bracket included
Max power 80 W
50 ohms impedance
Flat gain 9.5 dB
Excellent VSWR <1.4
Max wind load 100 km/h
Vertical or horizontal polarization

MORE INFO
CONTACT
PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN
TL-770
Model: TL-770
Price: call

TV UHF range CH 53 - CH 65
N connector
Mounting bracket included SIZE: 9""X 11"
Max power 60 W
50 ohms impedance
Flat gain 9 dB
Excellent VSWR <1.4
Max wind load 100 km/h
Vertical or horizontal polarization

MORE INFO
CONTACT

850 MHz - 1000 MHz SPECIAL ANTENNA
LOG4/GR
Model: LOG8510
Price: call

This special antenna antenna is excellent for any transmitter or receiver in 850-1000 MHz band. The antenna LOG8510 is using an N- type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 850 MHz- 1000 MHz band.
Dimensions: 11 " X 8.3" X 2.6" .

MORE INFO
TEST RECORD
CONTACT




1200 MHz - 1450 MHz SPECIAL ANTENNA
LOG4/GR
Model: LOG1214
Price:  call

This special antenna antenna is excellent for any transmitter or receiver in 1200-1450 MHz band. The antenna LOG1214 is using an N-type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 1200 MHz- 1450 MHz band.
Dimensions: 11 " X 8.3" X 2.6" .

MORE INFO
TEST RECORD
CONTACT




1250 MHz - 1600 MHz SPECIAL ANTENNA
LOG4/GR
Model: LOG1216
Price:  call

This special antenna antenna is excellent for any transmitter or receiver in 1250-1600 MHz band. The antenna LOG1216 is using an N- type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 1250 MHz- 1600 MHz band.
Dimensions: 11 " X 8.3" X 2.6" .

MORE INFO
TEST RECORD
CONTACT




1700 MHz - 1900 MHz SPECIAL ANTENNA
LOG4/GR
Model: LOG1719
Price:  call

This special antenna antenna is excellent for any transmitter or receiver in 1700-1900 MHz band. The antenna LOG1719 is using an N- type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 1700 MHz- 1900 MHz band.
Dimensions: 11 " X 8.3" X 2.6" .

MORE INFO
TEST RECORD
CONTACT




SPECIAL ANTENNA FOR 2.2 - 2.3 GHz , 12 dB GAIN

AN-790
Model: LOG-2223
Price: Call

This is a perfect high antenna for special applications 2.2-2.3 GHz. Excellent for point to point commnuications and microwave TV links.
Dimensions: 16.5 " X 3.5 "
Weight: 0.4 lb

MORE INFO
CONTACT




SPECIAL ANTENNA 2.12 dB GAIN 790 MHz
AN-790
Model: AN-790
Price: call

This antenna is a perfect match for our video transmitters / receivers SPX/M series. It will cover frequency range from 650- 800 MHz (UHF TV band, channels 45 - 69 UHF)
Dimensions:4.5 " X 0.5 "
Weight: 5 Grams.

MORE INFO
TEST RECORD 1 2
CONTACT




EXCELLENT SMALL 900 MHz ANTENNA
AN-900
Model: AN-900S
Price: call

This little antenna is excellent for any transmitter or receiver in 900 MHz band. The antenna is using a BNC type connector. Antenna AN-900 S has an excellent VSWR in 896 MHz- 930 MHz range.
Dimensions: 3.0" X 0.6" X 0.3".
Impedance 50 ohms
Weight: 5 Grams.

MORE INFO
CONTACT






EXCELLENT SMALL 900 MHz ANTENNA
ANS-900
Model: ANS-900
Price: call

This little antenna is excellent for any transmitter or receiver in 900 MHz band. The antenna is using a BNC type connector. Antenna ANS-900 has an excellent VSWR in 900 MHz- 930 MHz range.
Dimensions: 2.0" X 0.25".
Impedance 50 ohms
Weight: 5 Grams. Gain 2.2 dB

MORE INFO
CONTACT






EXCELLENT HIGH GAIN RUBBER DUCKY 900 MHz ANTENNA
AN-900
Model: AN-900LH
Price: call

This rubber ducky antenna is excellent for any transmitter or receiver in 900 MHz band. The antenna is using an SMA male connector. Antenna AN-900LH has an excellent VSWR in 896 MHz- 930 MHz range.
Dimensions: 17.0" X 0.56".
Impedance 50 ohms
Weight: 50 Grams.
Gain 6 dB.

MORE INFO

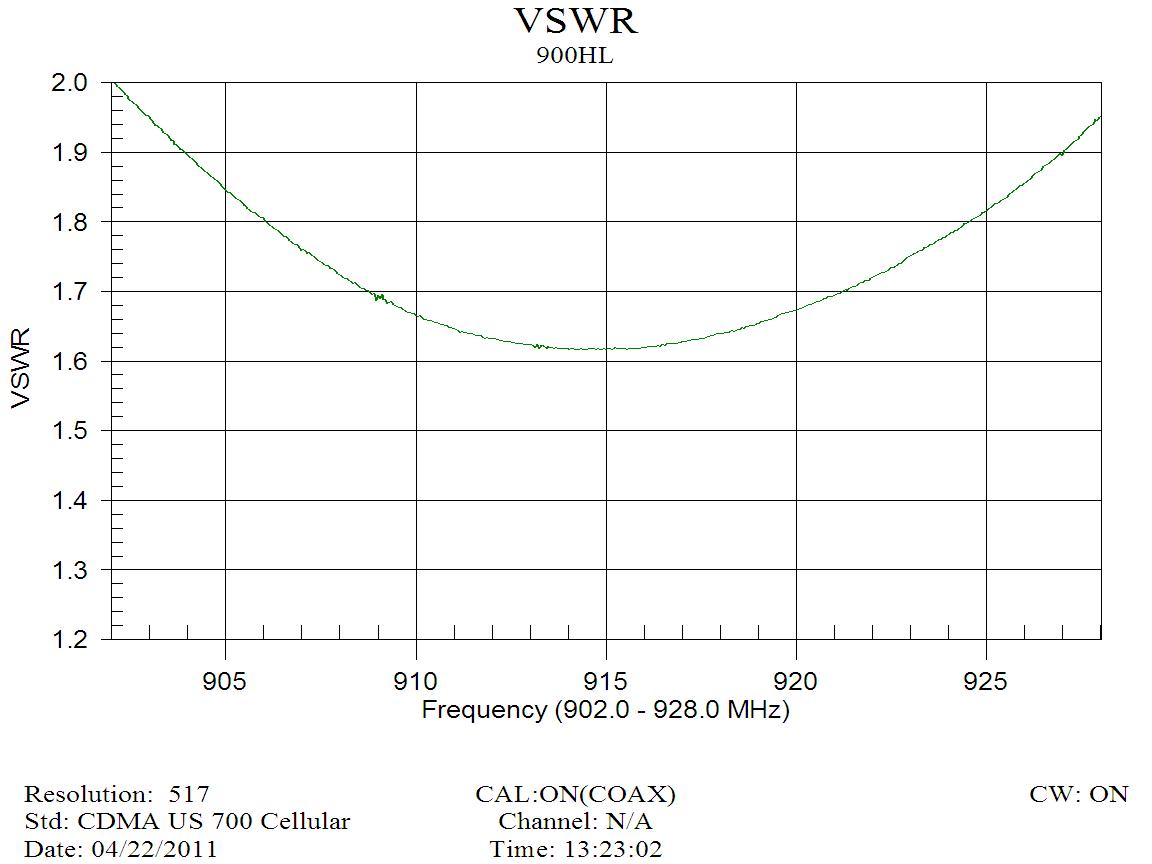

TEST RECORD
CONTACT






DIRECTIONAL PANEL ANTENNA 900 MHz
PN-900S
Model: PN-900S
Price: call

Panel antenna PN-900 S will give you an excellent extended range and 8 dB gain in 900 MHz band. This antenna can be used for both- transmitters and receivers for 900 MHz. Antenna has an N-type connector and comes with a BNC adapter. This antenna has excellent performances in 900 MHz- 928 MHz range.
Dimensions are:10.0" X 8.0" X 0.6".
Impedance 50 ohms
Gain 8 dB.

MORE INFO
TEST RECORD
CONTACT




EXCELLENT SMALL 1.7 GHz - 1.8 GHz ANTENNA
AX-18R
Model: AX-18R
Price: call

This little antenna is excellent for any transmitter or receiver in 1.7 GHz band. The antenna is using an SMA type connector. Dimensions are: 7.5" X 1.2" X 0.2". Impedance 50 ohms, gain 5.1 dBi. SWR < 2 in 1.73 GHz- 1.81 GHz
Dimensions: 8.5" X 0.2 ".
Impedance 50 ohms

MORE INFO
CONTACT




EXCELLENT SMALL 1800 MHz ANTENNA
ANS-900
Model: ANS-1800
Price: call

This little antenna is excellent for any transmitter or receiver in 1800 MHz band. The antenna is using a BNC type connector. Antenna ANS-1800 has an excellent VSWR in 1700 MHz- 1800 MHz range. Gain 1.8 dB
Dimensions: 2.0" X 0.25".
Impedance 50 ohms
Weight: 5 Grams.

MORE INFO
CONTACT






EXCELLENT SMALL 1.7 GHz - 1.8 GHz ANTENNA
MT-17
Model: MT-17
Price: call

This very compact mobile-mount omni antenna provides broad coverage and 5 dBi gain. It is ideally suited for PCS applications where omni-directional coverage and low visibility are desired.
Dimensions: 12.8 " including base .

MORE INFO
CONTACT








EXCELLENT 1.7 GHz - 1.9 GHz ANTENNA
AD-17S
Model: AD-17L
Price: call

AD-17L antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 1.7 GHz band. The antenna is using an SMA type connector.
Dimensions: 8.5 " X 1.5 "

MORE INFO
CONTACT




EXCELLENT 1.7 GHz - 1.9 GHz ANTENNA
AD-17S
Model: AD-17S
Price: call

AD-17S antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 1.7 GHz band. The antenna is using an SMA type connector.
Dimensions: 10.5 " X 1.5 "

MORE INFO
TEST RECORD
CONTACT

ADH-4776 AD-24SH Optional Mounting Bracket
Model: BRCK02
Price: $25.00 USD


OMNI-DIRECTIONAL ANTENNA 8 dB GAIN MIL GRADE
LT-860
Model: AD-1700SH
Price: call

This omni-directional antenna is a perfect match for UHF transmitters or receivers. It covers the frequency range from 1700-1900 MHz. This antennas has 8 dB gain and 50 ohms impedance.
Dimensions: 45" X 1.0 ".

MORE INFO
CONTACT

ADH-4776 AD-24SH Optional Mounting Bracket
Model: BRCK02
Price: $25.00 USD


OMNI-DIRECTIONAL ANTENNA 6 dB GAIN
LT-860
Model: AD-900S
Price: call

This omni-directional antenna is a perfect match for 900 UHF transmitters or receivers. It covers the frequency range from 902 MHz - 940 MHz.This antennas has 6 dB gain and 50 ohms impedance.
Dimensions: 20 " X 1.0 ".

MORE INFO
TEST RECORD
CONTACT

ADH-4776 AD-24SH Optional Mounting Bracket
Model: BRCK02
Price: $25.00 USD


HIGH GAIN 1.7 GHz PANEL ANTENNA 9.5 dB GAIN
PT-1700
Model: PT-1700
Price: call

Panel antenna PT-1700 will give you an excellent extended range and 9.5 dB gain in 1.7 GHz- 1.9 GHz band. This antenna can be used for both- transmitters and receivers for 1700 MHz. Dimension of this antenna is 6" X 5 " X 0.6". Antenna PT-1700 has an SMA connector. This antenna has excellent performances in 1700 MHz- 1900 MHz range. Please check pdf file.
Dimensions: 6.5 " X 5.0 " X 0.6 ".

MORE INFO
CONTACT




HIGH GAIN 1.71 GHz - 1.88 GHz PANEL ANTENNA 15.5 dB GAIN
PN-1700LH
Model: PT-1700LH
Price: call

Panel antenna PT-1700LH will give you an excellent extended range and 15.5 dB gain in 1.71 GHz - 1.88 GHz band. This antenna can be used for both- transmitters and receivers for 1700 MHz. Dimension of this antenna is 11.5" X 8.6 " X 1.2". Antenna PT-1700LH has an N-type connector. This antenna has excellent performances in 1700 MHz-1800 MHz range. Please check pdf file.

MORE INFO
CONTACT




1.7 GHz - 1.8 GHz ANTENNA
LOG2/GR
Model: LOG2/GR
Price: call

This special antenna is excellent for any transmitter or receiver in 1.7-1.8 GHz band. The antenna LOG2/GR is using an N- type connector. Length of this antenna is 40", diameter is 4". Impedance 50 ohms, gain 18 dB. SWR < 1.12 in 1.75 GHz- 1.85 GHz band.
Dimensions: 40.0 " X 4.0 "

MORE INFO
TEST RECORD
CONTACT

Please see our dwg files: 1, 2




1.7 GHz - 2.1 GHz SPECIAL ANTENNA
LOG4/GR
Model: LOG4/GR
Price: call

This special antenna antenna is excellent for any transmitter or receiver in 1.7-2.1 GHz band. The antenna LOG4/GR is using an N- type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 1.7 GHz- 2.1 GHz band.
Dimensions: 11 " X 8.3" X 2.6" .

MORE INFO
TEST RECORD
CONTACT




1.7 GHz - 2.1 GHz SPECIAL PARABOLIC HIGH GAIN ANTENNA NEW MODEL
PR-58
Model: PR-17/21
Price: call

The PR Series parabolic antennas family is suitable for terrestrial microwave communication system operating in the 1.7 to 2.1 GHz frequency bands. Diameter: 1.36 m or 55 " . Gain 24 dB.

MORE INFO
TEST RECORD
CONTACT




1.7 GHz - 2.1 GHz SPECIAL PARABOLIC HIGH GAIN ANTENNA NEW MODEL
PR-58
Model: PR-17/21C
Price: call

The PR Series parabolic antennas family is suitable for terrestrial microwave communication system operating in the 1.7 to 2.1 GHz frequency bands. Diameter: 1.0 m or 33 " . Gain 22 dB.

MORE INFO
TEST RECORD
CONTACT




72 MHz ANTENNA 72 MHz FOR SPECIAL APPLICATIONS
LUV-1000
Model: AN-72S
Price: call

This special antenna is excellent for remote controlled transmitters in72 MHz band. Impedance 50 ohms, gain 3.8 dB, Bandwidth is 2 MHz.
Dimensions: 55.5" x 0.75"

Picture 1, Picture 2

MORE INFO
CONTACT
