RECEIVERS >>900 MHz VIDEO RECEIVERS

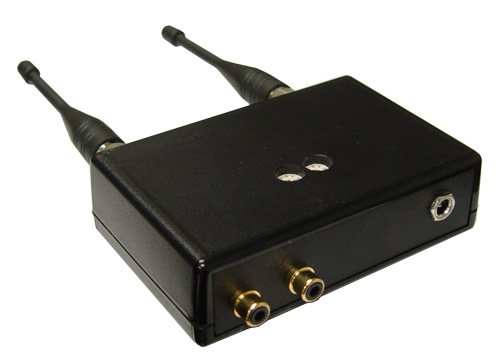

SPECIAL DIVERSITY AUDIO/VIDEO VIDEO RECEIVER M-1000 UHF BAND 400-900 MHz
ch-59
Model: M-1000
Price: call
Model: M-1000 PAL
Price: Call

The newest Diversity audio/video receiver module for any UHF TV transmitter is a perfect solution for professional Steadicam users. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also small CH 59 cable video transmitters). It works up to 900 MHz Required power supply is 9 V- 12 V DC/ 220 mA. This receiver has a special diversity circuit for the best signal reception and two separate antenna inputs
Dimensions: 4.9. " X 4.0 " X 1.2 ".

MORE INFO
MATCHING TRANSMITTERS
ANTENNAS & ACCESSORIES
CONTACT



M-808 SMALLEST RECEIVER FOR 900 MHz AM
m-808
Model: M-808
Price: call

This is a special receiver for all frequencies from 400 MHz- 920 MHz in UHF BAND. This receiver is small, sensitive and easy to use. MX-808 receiver works for PAL or NTSC TV system. Required DC power is 9 V-12 V/ 180 mA. This receiver will work on a small 9 V battery for 1 hour.
Dimensions: 2.4 " X 3.0 " X 1.0 ".

MORE INFO
MATCHING TRANSMITTERS
ANTENNAS & ACCESSORIES
CONTACT
RM-900B RECEIVER 900 MHz AM 12 CHANNELS
ch-59
Model: RM-900B
Model: RM-900B PAL
Price: call

New AM receiver for 900 MHz Model RM-900B is a high sensitive receiver for AM band 900 MHz. It is extremely stable, with 12 preprogrammed channels in 900 MHz band. It has excellent color picture and sound. Antenna connector is an BNC type and it is possible to use different kind of antennas with gain. RM-900B is excellent match for any of our AM video transmitters: SPX 916, XLT 900, HPX 916 or any other AM video transmitter in 900- 928 MHz range...This receiver has built-in preamplifier with band filter for great sensitivity.
Dimensions: 3.25 " X 3.0 " X 1.1 ".

FCC Complied!

MORE INFO
MATCHING TRANSMITTERS
ANTENNAS & ACCESSORIES
CONTACT

* PAL receiver may look different.
