RF AMPLIFIERS >>UHF/SHF AMPLIFIERS 1200 - 2200 MHz

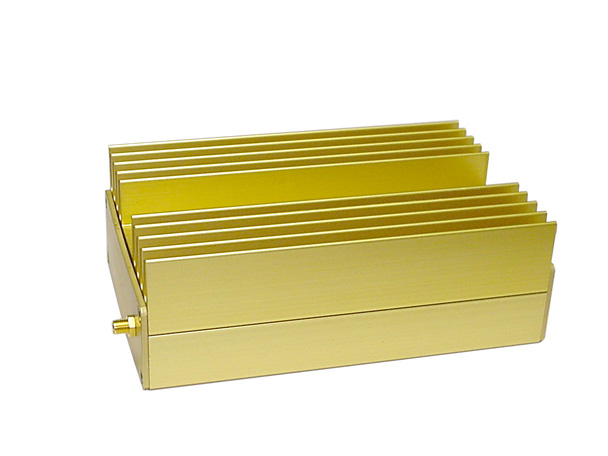

LABORATORY UHF AMPLIFIER - FROM 1950 MHz- 2200 MHz
AMP-1922

Model: AMP-1922BX
Price: Call

This is a high power broadband amplifier for labs or testing purposes. This amplifier is excellent for SUHF band 1950 MHz- 2000 MHz. The gain is over 30 dB. The maximum power is 20 W. Minimum required driving power is only 10 mW. This amplifier can be used for testing or TV applications since the linearity is excellent.
Dimensions: 6.0 " X 4.0 " X 2.0 "

20 W OUT WITH ONLY 1 mW DRIVING!

MORE INFO
CONTACT

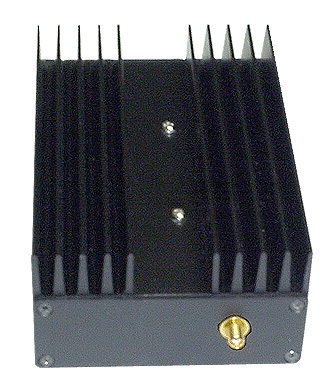

LABORATORY UHF AMPLIFIER - FROM 600 MHz- 2200 MHz
ZHM-2000
Export restricted item
Model: ZHM-2000
Price: Call

This is a high power broadband amplifier for labs or testing purposes. This amplifier is excellent for SUHF band 600 MHz- 2000 MHz. The gain is over 40 dB. The maximum power is 20 W. Minimum required driving power is only 1 mW. This amplifier can be used for testing or TV applications since the linearity is excellent.
Dimensions: 9.0 " X 3.8 " X 2.0 ".

20 W OUT WITH ONLY 1 mW DRIVING!

MORE INFO
CONTACT
LABORATORY GRADE HIGH POWER AMPLIFIER 5 W FOR 1200 MHz-1400 MHz BAND
ZH-1214M
Model: ZH-1214/L
Price: Call

This is an excellent linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. Model ZH-1214/L has 5 W RF power with driving input of only 2-5 mW (max 20 mW). Required power supply is 12 V / 2 A. Gain 30 dB.
Dimensions: 6.0 " X 3.0 " X 2.0 ".

MORE INFO
TEST RECORD
CONTACT



LABORATORY GRADE HIGH POWER AMPLIFIER 10 W FOR 1200 MHz-1400 MHz BAND
ZH-1214M
Model: ZH-1214/M
Price: call

This is an excellent linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. Model ZH-1214/M has 10 W RF power with driving input of only 5-10 mW (max 50 mW). Required power supply is 12 V / 2.8 A. Gain 30 dB.
Dimensions: 6.0 " X 3.0 " X 2.0 ".

MORE INFO
TEST RECORD
CONTACT



LABORATORY GRADE HIGH POWER AMPLIFIER 18 W FOR 1200 MHz-1400 MHz BAND
ZH-1214M
Model: ZH-1214/H
Price: call

This is an excellent high power linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. It has 22 W RF power with driving input of 150 mW. Required power supply is 12 V / 8 A. Gain 20 dB. It comes with N female connectors.
Dimensions: 6.0 " X 4.0 " X 2.0 ".

MORE INFO
TEST RECORD
CONTACT



LABORATORY GRADE HIGH POWER AMPLIFIER 40 W FOR 1200 MHz-1400 MHz BAND
ZH-1214M
Model: ZH-1214/HP
Price: Call

This is an excellent high power linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. It has 40 W RF power with driving input of 400 mW. Required power supply is 12 V / 14 A. Gain 18 dB. It comes with N female connectors.
Dimensions: 6.0 " X 4.0 " X 2.0 ".

MORE INFO
TEST RECORD
CONTACT



1200 MHz W RF LINEAR AMPLIFIER 22 W
AMP-1200HPBX
Model: AMP-1200HPBX
Price: Call

This is a tested high quality professional 22 W RF amplifier that requires minimum driving input of 50 m W for the maximum of 22 W RF power output. It is broadband in 1200 MHz- 1400MHz and doesn't require any tuning or adjusting. Power supply is 12.6 V/ 5 A. Gain is 26 dB. Input / Output 50 ohms impedance. Class of operation is AB. This amplifier is excellent for TV transmitters in 1200 MHz range. Heatsink not included.
Dimensions:6.0 " X 4.0 " X 2.0 "

MORE INFO
TEST RECORD
CONTACT

ULTRA LINEAR DRIVER UHF AMPLIFIER BOARD 1.5-2.2 GHz 2.5W
AMP-1520/2BX
Model: AMP-1520/2BX
Price: call

This is a tested high quality professional 2.5 W RF amplifier that requires driving input of 50 mW -80 mW for the maximum of 2.52 W RF power output. This amplifier is made for special applications. It has a narrow band from 1500 MHz- 2200 MHz . This board doesn't require any tuning or adjusting. Power supply is 12 V/ 0.65A. Gain is 22 dB. Input / Output 50 ohms impedance. Heatsink is not included.
Dimensions:3.25 " X 2.5" X 0.8'

MORE INFO
TEST RECORD
CONTACT

HIGH POWER AMPLIFIER 5 W FOR 1750 MHz-1900 MHz BAND
AMP-100FM
Model: ZH-1719
Model: ZH-1719N
Price: Call

This is an excellent high power linear RF amplifier for 1.8 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. It has 5 W RF power with driving input of 30 mW. Required power supply is 24 V / 2 A. Gain is 24 dB. It comes with SMA or N female in/out connectors
Dimensions: 6.0 " X 4.0 " X 2.0 " .

MORE INFO
TEST RECORD
CONTACT

Model ZH-1719 WITH SMA CONNECTORS
Model ZH-1719N WITH N-CONNETCORS

HIGH POWER AMPLIFIER 10 W FOR 2100 MHz-2200 MHz BAND
ZH-4010
Model: ZH-2122
Price: Call

This is an excellent high power linear RF amplifier for 2000 MHz band. It is a perfect solution for FM TV exciters, labs or experiments. It has 10 W RF power with driving input of 25 mW. Required power supply is 24 V / 4 A. Gain is 25 dB. It comes with N female connectors.
Dimensions are:6.0" X 4.0" X 2.0".

MORE INFO
TEST RECORD
CONTACT
