RF AMPLIFIERS >>SMALL HIGH GAIN AMPLIFIERS
HIGH GAIN AMPLIFIER FOR 2.4 GHz RECEIVERS
AMP18M-24
Model: AMP18M/24
Price: call

This is an excellent small amplifier for any receiver (not for transmitters). It will increase a gain of your receiver without adding large 2.4 GHz antennas. You can connect any 2.4 GHz antenna to input connector. This low noise amplifier will give you an extra 18 dB gain in 2.4 GHz band. The output connector is a male SMA type. Battery 9 V will last 14-20 hours.
Dimensions : 1.0 " X 0.6 "

MORE INFO
TEST RECORD
CONTACT
HIGH GAIN AMPLIFIER FOR 900 MHz RECEIVERS
AMP23M/900
Model: AMP23M/900
   Connector type: SMA
Price: call
   Connector type: BNC
Price: call

This is an excellent small amplifier for any 900 MHz receiver. This low noise amplifier will give you an extra 23 dB! gain in 900 MHz band. Also it has a Band pass filter for 900 MHz band to cut all undesired frequencies! It will increase a gain of your receiver without adding large Yagi antennas. You can connect any 900 MHz antenna to this amplifier. The output connector is a SMA or BNC type. Battery 9 V will last 14-20 hours.
Dimensions: 1.0 " X 0.7 ".

MORE INFO
TEST RECORD
CONTACT

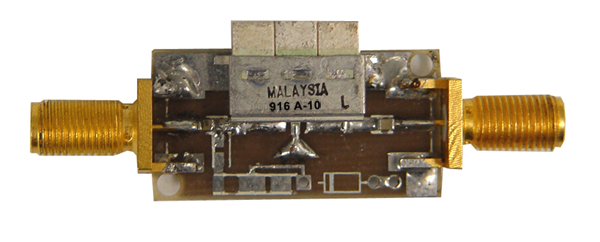

SPECIAL INSERTION FILTER FOR 900 MHz RECEIVERS AND TRANSMITTERS 0.5 DB LOSS
F-900
Model: F-900
Price: call

This is an excellent filter for any 900 MHz transmitter or receiver. This low loss filter will remove all unwanted frequencies from 900-920 MHz. The input / output connectors is an SMA type. There is need for batteries or supply.
Dimensions: 2.8 " X 1.5 " X 0.75 "

MORE INFO
CONTACT

HIGH GAIN AMPLIFIER FOR 900 MHz RECEIVERS
AMP900/23M
Model: AMP900/23M
Price: call

This is an excellent amplifier for any 900 MHz receiver. This low noise amplifier will give you an extra 23 dB! gain in 900 MHz band. Also it has a Band pass filter for 900 MHz band to cut all undesired frequencies! It will increase a gain of your receiver without adding large Yagi antennas. You can connect any 900 MHz antenna to this amplifier. The output connector is a BNC type. The power supply is included.
Dimensions: 3 " X 2.0 " X 0.7 ".

MORE INFO
TEST RECORD
CONTACT

HIGH GAIN AMPLIFIER FOR TV UHF RECEIVERS
AMP4786
Model: AMP-4786
Price: call

This is an excellent small amplifier for any TV UHF receiver (not for transmitters). It will increase a gain of TV UHF set, VCR or receiver in 470 MHz- 860 MHz range with over 23 dB. The output cable is open. Input connector is F TV type. Battery 9 V will last 14-20 hours.
Dimensions: 1.0 " X 0.7 " X 0.2 " .

MORE INFO
TEST RECORD
CONTACT

HIGH GAIN AMPLIFIER FOR 5.8 GHz RECEIVERS
AMP 58/18
Model: AMP-58/18
Price: call

This is an excellent small amplifier for any receiver (not for transmitters). It will increase a gain of any 5.8 GHz receiver without adding larger 5.8 GHz antennas. This low noise amplifier will give you an extra 15 dB gain in 5.8 GHz band. The output connector is a male SMA type. Battery 9 V will last 14-20 hours.
Dimensions: 1.0 " X 0.6 " X 0.2 ".

MORE INFO
TEST RECORD
CONTACT

HIGH GAIN AMPLIFIER FOR 5.8 GHz RECEIVERS
AMP-58/29
Model: AMP-58/29
Price: call

This is an excellent small amplifier for any receiver (not for transmitters). It will increase a gain of any 5.8 GHz receiver without adding larger 5.8 GHz antennas. This PC board amplifier will give you an extra 29 dB gain in 5.8 GHz band. The output connector is a male SMA type. DC power is 12 V/ 150 mA.
Dimensions: 2.8 " X 1.5 " X 0.75"

MORE INFO
TEST RECORD
CONTACT

HIGH GAIN LOW NOISE AMPLIFIER FOR 5.8 GHz RECEIVERS
AMP58/29LN
Model: AMP-58/29LN
Price: Call

This is an excellent Low noise (<0.7 dB) small amplifier for any receiver (not for transmitters). It will increase a gain of any 5.8 GHz receiver without adding larger 5.8 GHz antennas. This PC board amplifier will give you an extra 29 dB gain in 5.8 GHz band. The output connector is a male SMA type. DC power is 12 V/ 110 mA.
Dimensions: 2.8 " X 1.5 " X 0.75"

MORE INFO
TEST RECORD
CONTACT

Note: SMA connectors are extra.
HIGH GAIN WIDEBAND PRE AMPLIFIER FOR RECEIVERS 100 mHz- 12 gHz
AMP-015G
Model: AMP-015G
Price: Call

This is an excellent small amplifier for any receiver (not for transmitters). It will increase a gain of any signal from 100 MHz- 12 GHz range. This PC board amplifier will give you an extra 12-15 dB gain. The output connector is a male SMA type. DC power is 12 V/ 50 mA. This small amplifier has an extremely low noise level (<0.35dB / 12 GHz)
Dimensions: 2.8 " X 1.5 " X 0.75"

MORE INFO
TEST RECORD
CONTACT

Note: SMA connectors are extra.
LOW NOISE WIDEBAND PRE AMPLIFIER FOR RECEIVERS 5-7 gHz
AMP-015G
Model: AMP 58-17
Price: Call

This is an excellent LOW NOISE small amplifier for any receiver (not for transmitters). It will increase a gain of any signal from 5-7 GHz range. This PC board amplifier will give you an extra 18 dB gain. The output connector is a male SMA type. DC power is 12 V/ 15 mA. This small amplifier has an extremely low noise level (<0.32dB / 5.8 GHz)
Dimensions: 2.8 " X 1.5 " X 0.75"

MORE INFO AMP58-17
TEST RECORD
CONTACT

Note: SMA connectors are extra.
RF AMPLIFIERS >>SPECIAL LOW NOISE AMPLIFIER FOR HIGH FREQUENCY RECEIVERS
SPECIAL LOW NOISE AMPLIFIER FOR 500-1200 MHz RECEIVERS
0512
Model: LNAMP-0512
Price: call

This is a special Low-noise amplifier for 500 -1200 MHz receiver (not for transmitters). It will increase gain of 500 MHz- 1.2 GHz receivers without adding large antennas. You can connect any 500 -1200 MHz antenna to input connector. This low noise amplifier will give you an extra 35 dB gain in 500 -1200 MHz band. The output connector is a male SMA type.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL LOW NOISE AMPLIFIER FOR 1200-1400 MHz RECEIVERS
1214
Model: LNAMP-1214
Price: call

This is a special Low-noise amplifier for 1.2 -1.4 GHz receiver (not for transmitters). It will increase gain of 1.2 GHz- 1.4 GHz receivers without adding large antennas. You can connect any 1.2 -1.4 GHz antenna to input connector. This low noise amplifier will give you an extra 32 dB gain in 1.2 -1.4 GHz band. The output connector is a male SMA type.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL LOW NOISE AMPLIFIER FOR 1350-1450 MHz RECEIVERS
1314
Model: LNAMP-1314
Price: call

This is an excellent small amplifier for 1.35 -1.45 GHz receivers (not for transmitters). It will increase a gain of your receiver without adding large antennas. You can connect any 1.35 -1.45 GHz antenna to input connector. This low noise amplifier will give you an extra 33 dB gain in 1.35 -1.45 GHz band. The output connector is a male SMA type.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL LOW NOISE AMPLIFIER FOR 1600-2000 MHz RECEIVERS
1620
Model: LNAMP-1620
Price: call

This is an excellent small amplifier for 1.6 - 2.0 GHz receivers (not for transmitters). It will increase a gain of your receiver without adding large antennas. You can connect any 1.6 - 2.0 GHz antenna to input connector. This low noise amplifier will give you an extra 29 dB gain in 1.6 - 2.0 GHz band. The output connector is a male SMA type.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL LOW NOISE AMPLIFIER FOR 2200-2400 MHz RECEIVERS
1214
Model: LNAMP-2224
Price: call

This is an excellent small amplifier for 2.2 - 2.4 GHz receivers (not for transmitters). It will increase a gain of your receiver without adding large antennas. You can connect any 2.2 - 2.4 GHz antenna to input connector. This low noise amplifier will give you an extra 30 dB gain in 2.2 - 2.4 GHz band. The output connector is a male SMA type.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL LOW NOISE AMPLIFIER FOR 3400-3700 MHz RECEIVERS
1214
Model: LNAMP-3437
Price: call

This is an excellent small amplifier for 3.4 - 3.7 GHz receivers (not for transmitters). It will increase a gain of your receiver without adding large antennas. You can connect any 3.4 - 3.7 GHz antenna to input connector. This low noise amplifier will give you an extra 30 dB gain in 3.4 - 3.7 GHz band. The output connector is a male SMA type. Noise factor is less than 0.6 dB.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL LOW NOISE AMPLIFIER FOR 5000-6000 MHz RECEIVERS
5060
Model: LNAMP-5060
Price: call

This is an excellent small amplifier for 5.0 - 6.0 GHz receivers (not for transmitters). It will increase a gain of your receiver without adding large antennas. This low noise amplifier will give you an extra 30 dB gain in 5.0 - 6.0 GHz band. The output connector is a male SMA type.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL LOW NOISE AMPLIFIER FOR 6400-7200 MHz RECEIVERS
6472
Model: LNAMP-6472
Price: call

This is an excellent small amplifier for 6.4 - 7.2 GHz receivers (not for transmitters). You can connect this amplifier to 6.4 - 7.2 GHz antenna. This low noise amplifier will give you an extra 23 dB gain in 6.4 - 7.2 GHz band. The output connector is a male SMA type.
Dimensions : 2.8 " X 1.5 " X 0.75"

MORE INFO
CONTACT

SPECIAL SUPER AMPLIFIER FOR 10 MHz-7200 MHz RECEIVERS
7G
Model: LNAMP-7G
Price: Call

This is an excellent small amplifier for 10 MHz- 7.2 GHz receivers (not for transmitters). You can connect this amplifier to 10 MHz - 7.2 GHz equipment. This SUPER WIDEBAND amplifier will give you an extra 23 dB gain in 10 MHz- 7.2 GHz band. The output connector is SMA or N type.
Dimensions : 2.0 " X 1.0 " X 0.8"

MORE INFO
CONTACT

SPECIAL RECEIVER AMPLIFIER 72 MHz
72MC20
Model: AMP-72/MC20
Price: call

This small receiver amplifier is made for increasing the sensitivity and range of 72 MHz remote systems.  This amplifier incorporates a helical filter, low noise preamplifier design and it has an excellent rejection of unwanted signals.
Dimensions : 2.8 " X 1.7 " X 0.75"

MORE INFO
CONTACT
