Antenna PT-24 with low noise preamplifier LNAMP-2224
42 dB gain

UAV SURVEILLANCE & SOME SYSTEMS ARE RESTRICTED, PLEASE EMAIL FOR MORE INFO
MOST POWERFUL LONG DISTANCE VIDEO SURVEILLANCE SYSTEM, SYSTEM #1 FCC APPROVED
ch-59
LX-3000/5
XL-1800H

Model: LX-3000S
Price: Call


RF-Links Using The Best
Wireless Technology for
US Army unmanned vehicle

Audio-video transmitter LX-3000 has 8 channels in 2.3 MHz - 2.5 GHz range. This unit has wide temperature range from -40° C up to 75° C! The range of this system is app. 20 miles from the AIR using special antennas and our receivers VRX series! Recommended receiver is VRX 24 L. This High power Audio/ Video transmitter measures 6" X 4" X 2". A special heat sink is built in the box. Transmitter weights 230 grams. This special transmitter doesn't need any maintenance or tuning. The frequency setting is external - you can choose 8 channels in 2.4 GHz range by pushing the button. RF power output is over 5 W / 50 ohms load. Recommended antenna is dipole 5 dB gain AD-24S.

MORE INFO
CONTACT
TRANSMITTING ANTENNA INFORMATION


COMPLETE SYSTEM INCLUDES:

≡ 8 CHANNELS, POWERFUL AUDIO/VIDEO TRANSMITTER LX-3000/5
≡ 8 CHANNELS RECEIVER VRX-24 L
≡ TWO ANTENNAS: RUBBER DUCKY AND ONE PN 24
≡ AMPLIFIER AMP-18/24 M
≡ OMNI DIRECTIONAL HIGH GAIN ANTENNA AD-24S
≡ RF CABLE MIL. GRADE
≡ PIN-HOLE CMOS VIDEO CAMERA

LX-3000S SETUP
VERY LONG RANGE - SMALLEST POWERFUL LONG DISTANCE VIDEO SURVEILLANCE SYSTEM, SYSTEM #2
ch-59
LUV-250

Model: LUV-200S
Price: Call

This is a World's smallest 2.4 GHz video transmitter made for special applications. This transmitter is a single channel unit and comes in 8 different channels in 2.3 GHz - 2.5 GHz range. This unit can be used in the wide temperature range -40° C up to 75° C! The range is app. 5 miles line-of-sight from the AIR! Weight of this transmitter is 18 grams.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ POWERFUL SMALLEST VIDEO TRANSMITTER LUV-250
≡ 8 CHANNELS RECEIVER VRX-24 L
≡ TWO ANTENNAS: RUBBER DUCKY AND ONE PN 24
≡ AMPLIFIER AMP-18/24 M

LUV-200S SETUP

VIDEO SURVEILLANCE SYSTEM, SYSTEM #3 FCC APPROVED
ch-59
XL-1800H

Model: MX-3000S
Price: Call

Audio-video transmitter MX-3000 has 8 agile channels in 2.3 - 2.5 GHz range. It is extremely small, light (8 grams), sophisticated unit that will work from 6 V battery power! This is a great audio-video transmitter for UAV applications excellent for a special flying models where the weight and battery power are critical factor. With receiver VRX 24L you can obtain distance over 3 km from the Air using special high gain antenna on the receiving end with amplifier model: AMP-18M/24 ! This wireless video system is excellent for Micro Aircraft Vehicle (UAV) operations, experiments, surveillance etc... Part 90 FCC approved including all receivers VRX series.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ POWERFUL SMALLEST VIDEO TRANSMITTER MX-3000
≡ 8 CHANNELS RECEIVER VRX-24 L
≡ TWO ANTENNAS: RUBBER DUCKY
≡ AMPLIFIER AMP-18/24 M
VIDEO SURVEILLANCE SYSTEM, SYSTEM #4
ch-59
XL-1800H

Model: SDX-22S
Price: Call

Smallest video transmitter SDX-22 weights only 3 grams. RF power output is 50 mW / 9 V or 80 mW / 12V. This small video transmitter has a great distance from the AIR with receiver VRX-24L, antenna amplifier AMP-18 and a high gain antenna on the receiving end.

MORE INFO
CONTACT


COMPLETE SYSTEM INCLUDES:

≡ SDX-22 VIDEO TRANSMITTER
≡ 8 CHANNELS RECEIVER VRX-24 L
≡ TWO ANTENNAS: RUBBER DUCKY
≡ AMPLIFIER AMP-18/24 M





VERY LONG RANGE SYSTEM, SYSTEM #5
( AVAILABLE WITH HIGH SECURITY ENCODER AND DECODER)
ch-59
XL-1800H
XL-1800H

Model: LX-3000/10S
Price: Call

Rf-links.com presents the most powerful, long range 2.4 GHz system, tested for long distance over 40 miles from the air. The new system includes transmitter, receiver , high gain antennas and all cables. The transmitter has an option of changing the channels remotly (1-8).

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ MOST POWERFUL VIDEO TRANSMITTER LX-3000/10
≡ 8 CHANNELS RECEIVER VRX-24 L
≡ OMNI DIRECTIONAL ANTENNA AD-24SH
≡ DIRECTIONAL HIGH GAIN ANTENNA PT-24L
≡ RECEIVER AMPLIFIER AMP-18/24 M
≡ RF CABLE MIL GRADE 3 ft
≡ HIGH RESOLUTION PANASONIC CCD VIDEO CAMERA

LX-3000/10S SETUP

LONG RANGE SYSTEM, SYSTEM #6
ch-59
XL-1800H

Model: MAV-02S
Price: call

Rf-links.com presents the smallest, long range 2.4 GHz system, tested for distance over 1 mile from the air. The new system includes transmitter, camera, receiver , high gain antenna and all cables.

MORE INFO
CONTACT


COMPLETE SYSTEM INCLUDES:

≡ SMALLEST B&W VIDEO CAMERA CMX-408 WITH TRANSMITTER 80 mW
≡ 8 CHANNELS RECEIVER VRX-24 L
≡ OMNI DIRECTIONAL ANTENNA 3 dB GAIN

LONG RANGE SYSTEM, SYSTEM #7
ch-59
LUV-1000X
XL-1800H

Model: LUV-1000XS
Price: call

Rf-links.com presents the smallest, very long range 2.4 GHz system, tested for distance over 10 miles from the air. The new system includes transmitter, camera, receiver, high gain antennas and all cables.

Please chose from 2 options below:
≡ 6V version
≡ 12 V version

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ VIDEO TRANSMITTER LUV-1000MX
≡ 8 CHANNELS RECEIVER VRX-24 L
≡ DIRECTIONAL HIGH GAIN ANTENNA PT-24L
≡ OMNI DIRECTIONAL ANTENNA MT-24L
≡ AMPLIFIER AMP-18/24 M

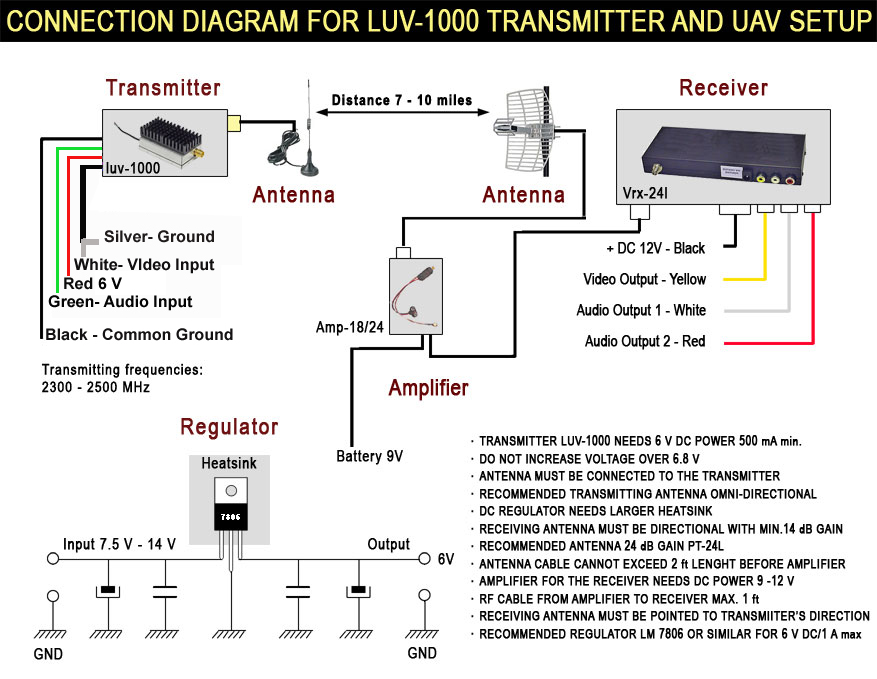

LUV-1000X SETUP

LONG RANGE SYSTEM, SYSTEM #8
ch-59
XL-1800H
XL-1800H

Model: MX-1700BS
Price: call

Rf-links.com presents the smallest, very long range 1.7 GHz system, tested for distance over 1-2 km ( 5-6 km with amplifier ) from the air. The new system includes transmitter, camera, receiver, high gain antennas and all cables.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ SMALLEST VIDEO TRANSMITTER MX-1700B
≡ 8 CHANNELS RECEIVER VRX-1700
≡ OMNI-DIRECTIONAL ANTENNA 3 dB GAIN
≡ SMALLEST B&W VIDEO CAMERA CMX-408
≡ PT-17 ANTENNA WITH RECEIVER AMPLIFIER

MX-1700BS SETUP

LONG RANGE SYSTEM , SYSTEM #9
ch-59
XL-1800H
XL-1800H

Model: MX-1700BHS
Price: call

Rf-links.com presents the smallest, very long range 1.7 GHz system, tested for distance over 5-6 km from the air. The new system includes transmitter, camera, receiver, high gain antennas and all cables.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ SMALLEST B&W VIDEO CAMERA CMX-408
≡ TRANSMITTER MX-1700B
≡ MOST POWERFUL AMPLIFIER AMP1700B
≡ 8 CHANNELS RECEIVER VRX-1700
≡ OMNI-DIRECTIONAL ANTENNA 3 dB GAIN
≡ PT-17 ANTENNA WITH RECEIVER AMPLIFIER

MX-1700BHS SETUP


WIDEBAND VIDEO SURVEILLANCE SYSTEM, LX-1020/5S , SYSTEM #10
rmx-2000
LX-1020/5
LOG4/GR

Model: LX-1020/5S
Price:Call

Audio-video transmitter LX1020/5 can work in 1.0 - 2.0 GHz range. It is small, sophisticated unit that will work from 12 V battery power. This is a great audio-video transmitter for UAV  applications, excellent for special flying models where the weight and battery power are critical factor. With receiver RMX-2000 you can obtain distance over 15 miles from the Air using special high gain antenna on the receiving end. This wireless video system is excellent for UAV operations, experiments, surveillance etc...

Government orders only

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:


≡ LX-1020/5 AUDIO-VIDEO TRANSMITTER
≡ RECEIVER RMX-2000
≡ TWO RUBBER DUCKY ANTENNAS
≡ GROUND BASE HIGH GAIN DIRECTIONAL ANTENNA
≡ SPECIAL VIDEO CAMERA INFRARED SENSITIVE INCLUDED
HD-1000/1 HIGH DEFINITION DIGITAL VIDEO TRANSMITTER 25-1000 MHz , SYSTEM #11
HD-1000
Model: HD-1000/1
Price: call
Model: HD-1000/2
Price: call
Model: HD-1000/10
Price: call



HD-1000

New Digital UHF Video Transmitter model HD-1000 is a fully synthesized audio/video transmitter for UHF band from 25 MHz-1000 MHz. It is a Military grade unit that covers the wide frequency range. The RF power output power is 1000 mW, 2 W (Model HD-1000/2) or 10W (Model HD-1000/10). It sends a crisp color picture and sound miles away. This transmitter will encode a single uncompressed program derived from devices with HDMI, Component Video or VGA outputs to HD MPEG2 video. Supports 480i, 480p, 720p and 1080i resolutions. This transmitter accepts Component Video signal, also it has built-in a Composite Video input, and VGA input as well.
Sold exclusively to Government agencies or Military forces.

Dimensions: 12.8 " X 3.5 " X 6.75 ".

HD-1000/1

HD-1000/2

HD-1000/10

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
PROFESSIONAL FLYING SYSTEM 5.8 GHz, 5W SYSTEM #12
LX-5400/5


Model: LX-5800/2S
Price: $1,200.00 USD

For different antenna options please click here...

This is the long range microwave system 5,8 GHz 2 W RF power, tested for long distances over 18 miles from the air. The new system includes transmitter, receiver, antennas are sold separately.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ 8 CHANNELS VIDEO TRANSMITTER LX-5800/2
≡ 8 CHANNELS RECEIVER VRX-58C
≡ HIGH RESOLUTION PANASONIC CCD VIDEO CAMERA NTSC


EXTREMELY LONG RANGE SYSTEM, SYSTEM #14
( AVAILABLE WITH HIGH SECURITY ENCODER AND DECODER)
rmx-2500
LX-3000/5
PH-24

Model: LX-3000/40S
Price: CALL

Rf-links.com presents the most powerful, long range 2.4 GHz system, tested for long distance over 150+ miles from the air. The new system includes transmitter, receiver , high gain antennas and all cables. The transmitter has an option of changing the channels remotly (1-8).

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ MOST POWERFUL VIDEO TRANSMITTER LX-3000/40
≡ DIGITALLY CONTROLLED RECEIVER RMX-2500
≡ OMNI DIRECTIONAL ANTENNA AD-2400HP
≡ DIRECTIONAL HIGH GAIN ANTENNA PH-24L
≡ RECEIVER AMPLIFIER AMP-18/24 MD
≡ RF CABLE MIL GRADE 3 ft
≡ HIGH RESOLUTION PANASONIC CCD VIDEO CAMERA

LX-3000/10S SETUP

PROFESSIONAL FLYING SYSTEM 5.8 GHz, 5W SYSTEM #15
LX-5400/5


Model: LX-5800/5S
Price: CALL

For different antenna options please click here...

This is the long range microwave system 5,8 GHz 5 W RF power, tested for long distances over 40 miles from the air. The new system includes transmitter, receiver, antennas are sold separately.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ 8 CHANNELS VIDEO TRANSMITTER LX-5800/5
≡ 8 CHANNELS RECEIVER VRX-58C
≡ HIGH RESOLUTION PANASONIC CCD VIDEO CAMERA NTSC


COMPLETE PROFESSIONAL FLYING SYSTEM , SYSTEM #16
WTX-4962S



Model: WTX-4962S
Price: CALL

For different antenna options please click here...

This is the smallest, long range microwave system, tested for long distance over 6 miles from the air. The new system includes transmitter, receiver, high gain antennas and all cables.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ VIDEO TRANSMITTER WTX-4962
≡ 8 CHANNELS RECEIVER WRX-4962
≡ OMNI-DIRECTIONAL ANTENNA 5 dB GAIN
≡ DIRECTIONAL HIGH GAIN ANTENNA 15 dB GAIN
≡ RF CABLE MIL. GRADE 3ft
≡ HIGH RESOLUTION PANASONIC CCD VIDEO CAMERA


PROFESSIONAL FLYING SYSTEM 4.9 GHz, 5W SYSTEM #18
LX-5400/5


Model: LX-4900/5S
Price: CALL

For different antenna options please click here...

This is the long range microwave system 4,9 GHz 5 W RF power, tested for long distances over 20 miles from the air. The new system includes transmitter, receiver, antennas are sold separately.

MORE INFO
CONTACT

COMPLETE SYSTEM INCLUDES:

≡ 8 CHANNELS VIDEO TRANSMITTER LX-4900/5
≡ 8 CHANNELS RECEIVER VRX-49C
≡ HIGH RESOLUTION PANASONIC CCD VIDEO CAMERA
