RANGE EXPECTATIONS FOR VIDEO TRANSMITTER



COMPLETE 900 MHz AUDIO/VIDEO SURVEILLANCE SYSTEM TRANSMITTER AND RECEIVER


Model: 900SYS
Price: Call

TRANSMITTERS >>900 MHz VIDEO TRANSMITTERS
WORLD SMALLEST VIDEO TRANSMITTER FOR ALL UHF CHANNELS & 900 MHz BAND IN 12 CHANNELS

Model: KX-4010
Price: call
Model: KX-4010 PAL
Price: Call
Model: KX-9010
Price: call
KX-9010 is not available in Pal.

A "Baracchino" is back, the famous TV smallest video transmitter from seventies originaly designed in Europe is back. The world's smallest audio/video transmitter KX-4010 is a special design for all UHF frequencies from 430-801 MHz. This video transmitter is very small, it measures 1.5"x 0.8". It is easy to use. Required DC power is 9 V-12 V/ 120 mA. This audio/video transmitter is great for video surveillance applications. AVAILABLE IN PAL or NTSC
Dimensions: 0.8" X 1.5".

Model KX-4010 covers all UHF TV channels and model KX-9010 covers also 900 MHz band in 12 channels.

MORE INFO: KX-4010 KX-9010
flyer
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
WORLD SMALLEST VIDEO TRANSMITTER FOR ALL VHF&UHF FREQUENCIES FROM 30 MHz-920 MHz

Model: WKX-30920
Price: Call
PAL OR NTSC

Wideband, all frequencies, AM Negative TV standard modulation, All TV systems, PAL, NTSC, SECAM are characteristics of a small Digitally controlled Video/audio transmitter. It covers all frequencies from 30 MHz-920 MHz without gaps or limits. It is a small unit (1.8" X 1.2" X 0.8") open board type, wideband of frequencies from 30 MHz- 920 MHz in 125 KHz step. This is a Real TV smallest video transmitter for any TV system or frequency. Required DC power is 9 V-12 V/ 220 mA. This audio/video transmitter is great for experiments or video surveillance applications.

Dimensions: 1.8" X 1.2" X 0.8"
Display size: 1.1" X 0.5" .

Model WKX-30920 covers VHF/ UHF TV channels.

MORE INFO: WKX-30920
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
FCC APPROVED VIDEO TRANSMITTER 900 MHz

Model: XLT-902
Model: XLT-916
Price: call

This is the World's smallest 900 MHz video transmitter Part 15 FCC approved! This little video transmitter will send a crisp and clear image black&white or color to your receiver 900 MHz (recommended receiver DCV-900). Model numbers are: XLT-902 - frequency 902 MHz and XLT-916 for 916 MHz.
Dimensions: 0.8" X 0.6" X0.12".
Frequency: 902 MHz or 916 MHz

MORE INFO
MATCHING RECEIVERS
CONTACT
50 mW VIDEO TRANSMITTER 900 MHz

Model: SPX-916
Price: call

This small video transmitter will give you a full 50 mW RF power of the board. It is excellent for covert applications. This small video transmitter will send the picture trough a concrete wall from the basement up to 4 floor!
Dimensions: 0.7" X 0.6" X0.12".

More Presentation Pictures:
How to increase the power of SPX-916
How to connect CMOS cameras to SPX-916

MORE INFO
MATCHING RECEIVERS
CONTACT





250 mW VIDEO TRANSMITTER 900 MHz

Model: HPX-916
Price: call

The most powerful world's smallest 900 MHz video transmitter! Engineered to the perfection! Full RF power 250 mW of the board! This transmitter has been tested from many law enforcement agencies. This is a rock solid video transmitter. Warranty one-year! Unbelievable size !
Dimensions: 1.4" X 0.6" X0.12".

How to connect CMOS cameras to SPX-916

MORE INFO
MATCHING RECEIVERS
CONTACT

NEW 12 CHANNELS 900 MHz VIDEO TRANSMITTER

Model: KX-900D
Price: Call

This small video transmitter for UHF is an excellent solution for video surveillance or experiments. The transmitter KX-900D is a 12 channels unit. It has 80 mW RF power and the dimensions is 2.4" X 1.5 "X 0.7". This transmitter sends a perfect color or B&W image to 900 MHz receiver including sound portion as well.
Recommended receiver is M-808.

More presentation pictures:

MORE INFO
MATCHING RECEIVERS
CONTACT

900 MHz VIDEO TRANSMITTER AVAILABLE IN TWO CHANNELS

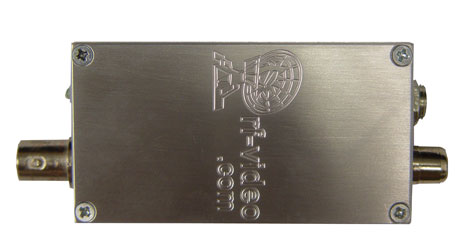

Model: PX-916
Price: call

This small video transmitter for 900 MHz is excellent solution for video surveillance or experiments. The transmitter PX-916 is a single channel unit. It has 300 mW RF power and it comes in four different frequencies: 902 MHz,  915 MHz or 916.6 MHz. Please choose one channel.
Dimensions: 2.8" X 1.5 " X 0.75".

More Presentation Pictures:
How to connect CMOS cameras to PX-916

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT

HIGH POWER 900 MHz VIDEO TRANSMITTER

Model: LX-900B
Price: call

This video transmitter for 900 MHz is excellent solution for video surveillance or experiments. The transmitter LX-900B has 1.8 W RF power and it comes in two different frequencies: 902 MHz or 916 MHz.
Dimensions: 5.0" X 4.0 " X1.2".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT

HIGH POWER 900 MHz VIDEO TRANSMITTER 12 cHANNELS
LX-900B/12
Model: LX-900B/12
Price: Call

This video transmitter for 900 MHz has 12 selectable channels and it is excellent solution for video surveillance or experiments. The transmitter LX-900B/12 has 1.8 W RF power.
Dimensions: 5.0" X 4.0 " X1.2".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT

HIGH POWER 900 MHz VIDEO TRANSMITTER


Model: LX-900B-10
Price: Call

This video transmitter for 900 MHz is excellent solution for video surveillance or experiments. The transmitter LX-900B/10 has 10 W RF power and it comes in two different frequencies: 906 MHz or 916 MHz
Dimensions: 6.0" X 4.0 " X2.0".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT

HIGH POWER 900 MHz AUDIO/VIDEO TRANSMITTER


Model: LX900B10-12
Price: Call

This video transmitter for 900 MHz is excellent solution for video surveillance or long grange video applications. The transmitter LX-900B/10 has 10 W RF power and it comes in twelve different selectable frequencies from: 890 MHz to 918 MHz. This transmitter uses AM modulation and it has built-in audio carrier.
Recommended receiver is M-808 or RM-900B.

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT

HIGH POWER 900 MHz FM VIDEO TRANSMITTER 20 W

LX-916/20 WFM
Model: LX-916/20WFM
Price: Call

This video transmitter for 900 MHz is excellent solution for video surveillance or experiments. The transmitter LX-916/20 WFM has 20 W RF power and it comes in two different frequencies: 906 MHz or 916 MHz. This transmitter uses an FM modulation.
Dimensions: 6.0" X 4.0 " X2.0".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT

COMPLETE 900 MHz AUDIO/VIDEO SURVEILLANCE SYSTEM TRANSMITTER AND RECEIVER


Model: 900SYS
Price: Call

This video surveillance system is recommended for Law enforcement agencies. The complete solution comes with transmitter, receiver and high gain antennas. This system is great for closed operations from 300-600 ft range even trough the walls.

MORE INFO
ANTENNAS & ACCESSORIES
CONTACT
