LABORATORY RF AMPLIFIER - WIDEBAND FROM 50 MHz- 1200 MHz
Model: ZH-1200/B Price: $ 545.00 USD
This is a wideband amplifier for labs or testing purposes. It is wideband from 50 MHz- 1200 MHz. The gain is 22 dB. The maximum power is +30 dBm (1000 mW). This amplifier can be used for TV applications since the linearity is excellent.
Dimensions : 4.2" X3.5 " X 2.0 "
This is a high power broadband amplifier for labs or testing purposes. This amplifier is excellent for SUHF band 600 MHz- 2000 MHz. The gain is over 40 dB. The maximum power is 20 W. Minimum required driving power is only 1 mW. This amplifier can be used for testing or TV applications since the linearity is excellent.
Dimensions:
9.0 " X 3.8 " X 2.0 ".

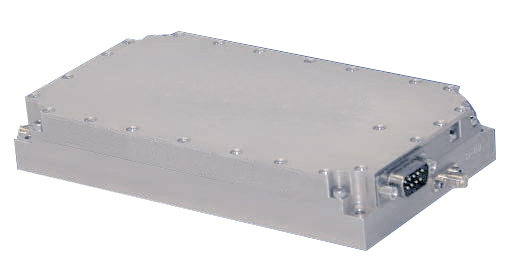

MIL GRADE HIGH POWER AMPLIFIER 20 MHz TO 1 GHz 100 W ZHM20-1000/100
Model: ZHM 20-1000/100 Price: Call
This amplifier operates from 20 MHz to 1000 MHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over a multi-octave bandwidth. It was designed for broad band jamming and communication systems platforms and its bandwidth can be extended to 1200 MHz+ with similar performance. It is packaged in a modular housing that is approximately 3.4"(W) x 6.4"(L) x 1.0"(H). This amplifier has a typical P3dB of 100 watts at room temperature.
Noise figure at room temperature is 10.0 dB typical. It offers a typical gain of 58 dB with a typical gain flatness of ± 2.0 dB. The power and gain flatness across the band is extremely flat for the bandwidth. It operates from -40C to +85C base plate.
MIL GRADE HIGH POWER AMPLIFIER 200 MHz TO 525 MHz 120 W ZHM0.2-525/120
Model: ZHM 0.2-525/120 Price: Call
This is a high power, broadband, Gallium Nitride (GaN) RF amplifier that operates from 20 MHz to 520 MHz.
This PA is ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over a multi-octave bandwidth. This amplifier was designed for broad band jamming and communication systems platforms. This amplifier operates with a base plate temperature of 85C with no degradation in the MTBF for the GaN devices inside. It is packaged in a modular housing that is approximately 3.4" (width) by 6.4" (long) by 1.0" (height). This amplifier has a typical P3dB of 100-125watts at room temperature. Noise figure at room temperature is 10.0 dB typical. This amplifier offers a typical gain of 58 dB with a typical gain flatness of ± 2.0 dB. The power and gain flatness across the band is extremely flat for the bandwidth. Input VSWR is 2.0:1 maximum. Class AB quiescent current is ~2.0 amps typical employing a +28 Vdc supply.
MIL GRADE HIGH POWER AMPLIFIER 20 MHz TO 1 GHz 50W ZHM20-2500/50
Model: ZHM 20-2500/50 Price: Call
This amplifier operates from 20 MHz to 1000 MHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over a multi-decade bandwidth. It was designed for broad band jamming and communication systems platforms It is packaged in a modular housing that is approximately 6.5" (W) x 7.5" (L) x 2.0" (H). This amplifier has a typical P3dB of 50-100 watts at room temperature.
Noise figure at room temperature is 8.0 dB typical. It offers a typical gain of 55 dB with a typical gain flatness of ± 3.0 dB. The power and gain flatness across the band is very flat for the bandwidth.

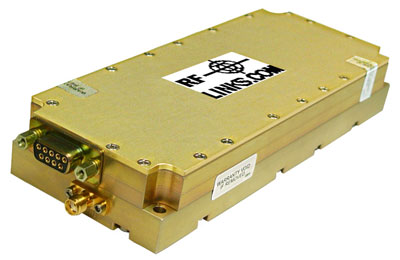

MIL GRADE HIGH POWER AMPLIFIER 20 MHz TO 6 GHz 10 w ZHM20-6000/10
Model: ZHM 20-6000/10 Price: Call
This is a medium power, super broadband RF amplifier that operates from 20 MHz to 6 GHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over an extremely large bandwidth with decent power added efficiency. It was designed for broad band jamming and communication systems platforms. It is packaged in a modular housing that is approximately 2.5"(W)x6.4"(L)x1.00"(H). This amplifier has a typical saturated output power of 5-10 watts at room temperature. Noise figure at room temperature is 10.0 dB typical. It offers a typical gain of 50 dB with a typical gain flatness of ± 4.0 dB.
MIL GRADE HIGH POWER AMPLIFIER 500 MHz TO 2.5 GHz 30 w ZHM 50-2500/30
Model: ZHM 50-2500/30 Price: Call
This is a high power, broadband, gallium nitride (GaN) RF amplifier that operates from 0.5 to 2.5 GHz. This PA is ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over a multi-octave bandwidth. It is packaged in a modular housing that is approximately 4.0" x 6.0" x 2.0". This amplifier has a typical P1dB of 20 watts at room temperature. Saturated output power across the band is typically 25 to 30 watts. Noise figure at room temperature is 6.0dB typical. This amplifier offers a typical gain of 50 dB with a typical gain flatness of ± 2.0dB.
MIL GRADE HIGH POWER AMPLIFIER 500 MHz TO 3.0 GHz 50 w ZHM 500-3000/50
Model: ZHM 500-3000/50 Price: Call
This is is a high power, broadband, Gallium Nitride (GaN) RF amplifier that operates from 500 MHz to 3.0 GHz, ideal for broadband military platforms as well as commercial applications. This amplifier was designed for broad band jamming and communication systems platforms. It is packaged in a modular housing that is approximately 7.0" (width) by 9.0" (long) by 1.5" (height). This amplifier has a minimum P3dB of 50 watts at room temperature. Output power is typically 70 to 100 watts across the band. Noise figure at room temperature is 10.0 dB typical. This amplifier offers a typical gain of 35 dB with a typical gain flatness of ± 2.0 dB. The power and gain flatness across the band is extremely flat for the bandwidth. Input and Output VSWR is 2.0:1 maximum. This amplifier operates from -40C to +85C base plate temperature.
MIL GRADE HIGH POWER AMPLIFIER 800 MHz TO 2.5 GHz 200 w ZHM 800-2500/200
Model: ZHM 800-2500/200 Price: Call
This is a high power, broadband, silicon carbide (SiC) RF amplifier that operates from 0.8 to 2.5 GHz. This PA is ideal for broadband military platforms as well as commercial applications. It is packaged in a modular housing that is approximately 8.0" x 8.0" x 1.5". Noise figure at room temperature is 10.0 dB typical. This amplifier has a typical P3dB of 200 watts at room temperature. It offers a typical gain of 45 dB with a typical gain flatness of ± 2.0 dB. Typical OIP3 is 58 dBm. Input and Output VSWR is 2.0:1 maximum. Class AB current is ~6.3 amps typical employing a +50 Vdc supply.
MIL GRADE HIGH POWER AMPLIFIER 800 MHz TO 2.5 GHz 50 w ZHM 800-2500/50
Model: ZHM 800-2500/50 Price: Call
This is a high power, broadband, silicon carbide (SiC) RF amplifier that operates from 0.8 to 2.5 GHz. This PA is ideal for broadband military platforms as well as commercial applications. It is packaged in a modular housing that is approximately 8.0" by 8.0" by 1.5". This amplifier has a typical P3dB of 70 watts at room temperature. Noise figure at room temperature is 10.0 dB typical. This amplifier offers a typical gain of 45 dB with a typical gain flatness of ± 2.0 dB. Typical OIP3 is 58 dBm. Input and Output VSWR is 2.0:1 maximum. Class AB current is ~6.3 amps typical employing a +50 Vdc supply.
MIL GRADE HIGH POWER AMPLIFIER 1.0 GHz TO 2.5 GHz 20 w ZHM 1000-2500/20
Model: ZHM 1000-2500/20 Price: Call
This a high power, broadband, silicon carbide (SiC) RF amplifier that operates from 1.0 to 2.5 GHz. It is ideal for broadband military platforms as well as commercial applications. This RF module employs temperature compensation to keep the gain constant over the temperature extremes. It is packaged in a modular, robust housing that is approximately 2.5" (W) X 6.4" (L) X 1.0 (H)". This amplifier has a typical P1dB of 15 watts at room temperature. Saturated output power across the band is typically 15-20 watts. Noise figure at room temperature is 8.0 dB typical. This amplifier offers a typical gain of 49 dB with a typical gain flatness of ± 1.0dB. Typical OIP3 is 52dBm. Input and Output VSWR is 2.0:1 maximum. Class A current is 4.0 amps typical employing a +28Vdc supply. This PA operates from a 28Vdc input voltage. This amplifier operates from -40C to +85 base plate.
MIL GRADE HIGH POWER AMPLIFIER 800 MHzTO 2.5 GHz 50 w ZHM 1000-2500/50
Model: ZHM 1000-2500/50 Price: Call
This is a high power, broadband, Gallium Nitride (GaN) RF amplifier that operates from 1.0 to 2.5 GHz. This unit will operate down to 800 MHz with no degradation in performance, ideal for broadband military platforms as well as commercial applications. This RF module employs temperature compensation to keep the gain constant over the temperature extremes. The power response changes by a ±0.75 dB typical over temperature.This amplifier has a typical P1dB of 35 watts at room temperature. Saturated output power across the band is typically 50 watts. It is packaged in a modular, robust housing that is approximately 2.5" (W) x 6.4" (L) x 1.0 (H)". Noise figure at room temperature is 8.0dB typical. This amplifier offers a typical gain of 50 dB with a typical gain flatness of ± 2.0dB.
MIL GRADE HIGH POWER AMPLIFIER 1.7 GHz TO 2. GHz 80 w ZHM 1700-2200/80
Model: ZHM 1700-2200/80 Price: 3,298.00 US
This is a high power, solid state RF amplifier which covers in excess of 500 MHz of bandwidth from 1.7 to 2.2 GHz. This Class AB amplifier offers greater than 30 dB of gain and a minimum of 80 watts across the band. Typical output power from 1.8 t0 2.1 GHz is greater than 100 watts. Its noise figure is less than 5.0 dB. Input/output VSWR are always better than 2.0:1. This unit operates from +12 Vdc and comes in a housing with a heat-sink which is 4.0” x 8.25” x 2.5”. SMA female connectors are standard. It can be used in any system where high power, high gain and high linearity are required. This unit can be operated CW or Pulsed.
This is a high power broadband amplifier for labs or testing purposes. This amplifier is excellent for SUHF band 800 MHz- 2000 MHz. The gain is over 49 dB. The maximum power is 10 W. Minimum required driving power is only 1 mW. This amplifier can be used for testing or TV applications since the linearity is excellent.
Dimensions:
7.0 " X 3.8 " X 1.18". 10 W OUT WITH ONLY 1 mW DRIVING
This is a high power broadband amplifier for labs or testing purposes. This amplifier is excellent for SUHF band 600 MHz- 2000 MHz. The gain is over 36 dB. The maximum power is 10 W. Minimum required driving power is only 10 mW. This amplifier can be used for testing or TV applications since the linearity is excellent.
Dimensions:
6.0 " X 3.0 " X 2.0 ".
LABORATORY GRADE HIGH POWER AMPLIFIER 5 W FOR 1200 MHz-1400 MHz BAND
Model: ZH-1214 Price: $599.00 US
This is an excellent linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. Model ZH-1214 has 5 W RF power with driving input of only 10 mW. Required power supply is 12 V / 1.8 A. Gain 29 dB.
Dimensions:
6.0 " X 3.0 " X 2.0 " .
LABORATORY GRADE HIGH POWER AMPLIFIER 10 W FOR 1200 MHz-1400 MHz BAND
Model: ZH-1214/M Price: $ 699.00 USD
This is an excellent linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. Model ZH-1214/M has 10 W RF power with driving input of only 20 mW. Required power supply is 12 V / 3.8 A. Gain 30 dB.
Dimensions:
6.0 " X 3.0 " X 2.0 " .
LABORATORY GRADE HIGH POWER AMPLIFIER 18 W FOR 1200 MHz-1400 MHz BAND
Model: ZH-1214/H Price: $ 699.00 USD
This is an excellent high power linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. It has 18 W RF power with driving input of 200 mW. Required power supply is 12 V / 8 A. Gain 20 dB. It comes with N female connectors.
Dimensions: 6.0 " X 3.0 X 2.0 "
LABORATORY HIGH POWER AMPLIFIER 7 W WIDEBAND FROM 60 MHz - 90 MHz
Model: ZH-6090 Price: $ 499.00 USD
This is a tested high quality professional 7 W amplifier that requires minimum driving input of 30 m W for the maximum of 7 W RF power output. It is broadband in 60 MHz- 90 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain 23 dB. SMA connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 6.0" X 3.0 " X 2.0 ".
This is a broadband amplifier for labs or testing purposes. This amplifier is excellent for UHF band 400 MHz- 1000 MHz. The gain is over 44 dB. The maximum power is 30 W. Minimum required driving power is only 1 mW. This amplifier can be used for testing or TV applications since the linearity is excellent.
Dimensions:
3.5 " X 1.0 " X 6.2 ".

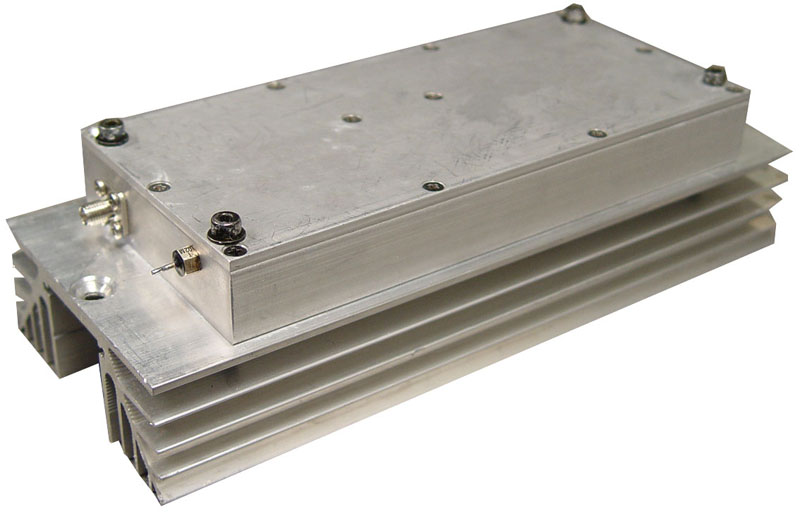

LABORATORY UHF AMPLIFIER - FROM 1200 MHz- 2700 MHz
Model: ZH-1227HP Price: call
This is a broadband amplifier for labs or testing purposes. This amplifier is excellent for UHF band 1200 MHz to Microwave frequencies - 2700 MHz. The gain is over 33 dB. The maximum power is 10 W. Minimum required driving power is 50 mW. This amplifier can be used for analog or digital applications since the linearity is excellent. It comes assembled, tested with a large heatsink.Dimensions:
3.5 " X 8.5 " X2 ".
