ch-59

Model: MTR-8000
Price: CALL

NEW

PROFESSIONAL TV REPEATER RTV-560

Model: RTV-560
Price: CALL

RECOMMENDED LONG RANGE ANTENNAS

PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN

Model: LT-860
Price: $ 149.00 USD
  • arrow Size: 11 " X 10 " X 0.1 "
  • arrow BNC connector
  • arrow Horizontal, Vertical polarization
  • arrow Weather Resistance
  • arrow 100g

PROFESSIONAL UHF TV MOBILE ANTENNA 3 dB GAIN

Model: MB-4070
Price: $ 300.00 USD
  • arrow Size: 25 " X 0.1 " (Base 4.7 ")
  • arrow BNC connector
  • arrow Vertical polarization
  • arrow Weather Resistance
  • arrow 100g

PROFESSIONAL UHF TV OMNI DIRECTIONAL ANTENNA 1.8 dB GAIN

Model: MB-4568
Price: $ 150.00 USD
  • arrow Size: 0.1 " X 7.5 " (Base 1.2")
  • arrow BNC connector
  • arrow Vertical polarization
  • arrow Weather Resistance
  • arrow 30g

SPECIAL ANTENNA 2.0 dB GAIN 470 - 860 MHz

Model: AN-4786
Price: $ 99.95 USD
  • arrow Dimensions: 5.5 " X 0.5 "
  • arrow 470-860 MHz (UHF TV band, channels 14 - 69 UHF).
  • arrow Vertical polarization
  • arrow BNC connnector
  • arrow 21 grams

LONG DISTANCE UHF ANTENNA 4 dB GAIN 470-860 MHz

Model: TN-4786
Price: $ 99.95 USD
  • arrow Dimensions: 12.2 " X 0.5 "
  • arrow 470-860 MHz (UHF TV band, channels 14 - 69 UHF).
  • arrow Vertical polarization
  • arrow BNC connnector
  • arrow 28 grams

TRANSMITTERS >>VIDEO SENDERS FOR FILM - NTSC ( Also Available for PAL)

ZERO LATENCY

ZERO DELAY

A REAL-TIME VIDEO SYSTEMS

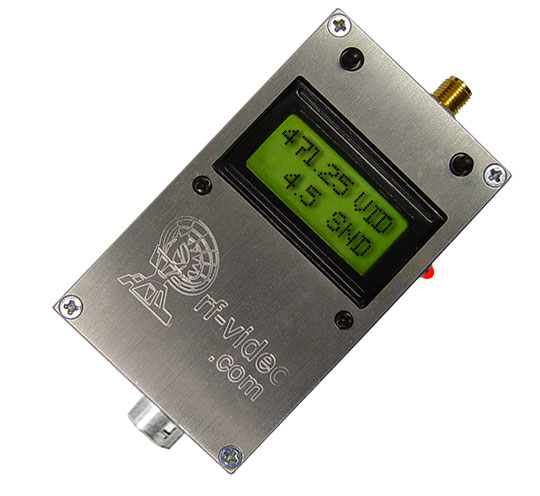

IGX-1000 PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS (NTSC & PAL) WITH DIGITAL DISPLAY

IGX-1000
Model: IGX-1000
Price: call

The newest video sender IGX-1000 arrived. It has been designed for professionals in Film industry and TV production. This video transmitter works for ANY TV system and any country: PAL, NTSC, SECAM...This unit has an LCD display and you can set any frequency from, as low as 40 MHz, all the way to 928 MHz. The frequency step is adjustable. This amazing video transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. Digital display indicates the UHF frequency. The bottom line of the display shows the carrier frequency that can be set to any TV system in any country. The range of this video sender is over 300 ft line-of sight. IGX-1000 has built-in an audio portion. Recommended receiver is M-806. A special matching antenna that covers entire UHF TV band is included. This unit out performs all video senders on the market. Recommended DC voltage is 12 V. This Video sender works from 12 V - 24 V DC, The channel selection is simple by push buttons.
Dimensions: 2.8 " X 1.5 " X 0.75 ".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
TRANSMITTING CHANNELS LIST FOR GX-68D NTSC TV SYSTEM
DIFFERENCES & SIMILARITIES OF GX- SERIES VIDEO TRANSMITTERS


GX-1000 PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS WITH DIGITAL DISPLAY

GX-1000
Model: GX-1000
Model: GX-1000/H
Price: call

The newest video sender GX-1000 arrived. It has been designed for professionals in Film industry and TV production. This video transmitter works for ANY TV system and any country: PAL, NTSC, SECAM...This unit has an LCD display and you can set any frequency from, as low as 40 MHz, all the way to 928 MHz. The frequency step is adjustable. This amazing video transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. Digital display indicates the UHF frequency. The bottom line of the display shows the carrier frequency that can be set to any TV system in any country. The range of this video sender is over 600 ft line-of sight (medium power model) or over 1 km with a high power unit. Transmitter measures only 3.2"x 2.0"x 0.9". GX-1000 has built-in an audio portion. Recommended receiver is M-806. A special matching antenna that covers entire UHF TV band is included. Thius unit out performs all video senders on the market. Recommended DC voltage is 12 V. This Video sender works from 12 V - 24 V DC, or 12- 50 VDC for a high power model, thanks to special switching power supply built- in the unit. The channel selection is simple by push buttons.
Dimensions: 3.2 " X 2.0 " X0.9 ".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
TRANSMITTING CHANNELS LIST FOR GX-68D NTSC TV SYSTEM
DIFFERENCES & SIMILARITIES OF GX- SERIES VIDEO TRANSMITTERS


PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS WITH DIGITAL DISPLAY
GX-68
Model: GX-68D
GX-68
Model: GX-68DBNC
Price: call

The newest video sender GX-68D has been designed for professionals in Film industry and TV production. This unit has over 50 UHF channels. TV channels from CH 21-69 and 10 cable channels are available. This transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. Digital display indicates the UHF channel. The range of this video sender is over 600 ft line-of sight (medium power model) or over 1 km with a high power unit. Transmitter measures only 3.2"x 2.0"x 0.9". GX-68D has built-in an audio portion. Recommended receiver is M-806. A special matching antenna that covers entire UHF TV band is included. Thius unit out performs all video senders on the market. Recommended DC voltage is 12 V. This Video sender works from 12 V - 50 V DC, thanks to special switching power supply built- in the unit. The channel selection is simple by push buttons.
Dimensions: 3.2 " X 2.0 " X0.9 ".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
TRANSMITTING CHANNELS LIST FOR GX-68D NTSC TV SYSTEM
DIFFERENCES & SIMILARITIES OF GX- SERIES VIDEO TRANSMITTERS

 PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS
GX-68
Model: GX-68 Low power
Model: GX-68/H High Power
Price: call

The newest video sender GX-68 has been designed for professionals in Film industry and TV production. This unit has over 50 usable UHF channels. TV channels from CH 21-69 and some cable channels are available. This transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. The range of this video sender is over 600 ft line-of sight (medium power model) or over 1 km with a high power unit. GX-68 has built-in an audio portion. Recommended receiver is M-806. A special matching antennas are included (2 different antennas to cover all UHF TV band).
Dimensions: 3.2 " X 2.0 " X0.9 ".

How to set up channels on GX-68, please see the sample .

MORE INFO
an-500
an-450
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
TRANSMITTING CHANNELS LIST FOR GX-68 NTSC TV SYSTEM
DIFFERENCES & SIMILARITIES OF GX- SERIES VIDEO TRANSMITTERS
testing testing testing testing testing testing

 PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS - NO AUDIO
GX-68
Model: GX-68NS
Price: call

The newest video sender GX-68NS has been designed for professionals in Film industry and TV production. This unit has over 50 usable UHF channels. TV channels from CH 21-69 and some cable channels are available. This transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. The range of this video sender is over 600 ft line-of sight (medium power model) or over 1 km with a high power unit. GX-68NS has no audio. Recommended receiver is M-806. A special matching antennas are included (2 different antennas to cover all UHF TV band).
Dimensions: 3.2 " X 2.0 " X0.9 ".

How to set up channels on GX-68NS, please see the sample .

MORE INFO
an-500
an-450
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
TRANSMITTING CHANNELS LIST FOR GX-68 NTSC TV SYSTEM
DIFFERENCES & SIMILARITIES OF GX- SERIES VIDEO TRANSMITTERS
testing testing testing testing testing testing

DIGITAL TO ANALOG CONVERTER HDC-01 new model
IGX-68
Model: HDC-01
Price: CALL

Convert any 3D/SD/HD to composite videooutput with this small box. Compatible with our video transmitters MX, GX, IGX series.


Dimensions: 3"X3"X0.7"

CONTACT
SPECIAL SINGLE CHANNEL VIDEO TRANSMITTER & RECEIVER PAIR 5644.75 MHz - DEMO
LX-5600C & RMX-5600C
Transmitter & Receiver pair
Model: LX-5600C
Model: RMX-5600C
Demo units Price: call

New Microwave Transmitter and Receiver are fully synthesized single channel items (5,644.750 MHz). The RF power output power is 200 mW. They are great for low range communication up to 2500 ft LOS or experiments.

Dimensions: 2.8 " X 1.5 " X 0.75 ".

MORE INFO
ANTENNAS & ACCESSORIES
CONTACT

MEDIUM POWER VIDEO SENDER IGX- 68 new model
IGX-68
Model: iGX-68
                 IGX-68/HR

Price: CALL

For Canadian Orders, Please Click Here

The new model UHF Video transmitter was designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market. Range is up to 600 ft line-of-sight under ideal conditions. This transmitter has excellent color picture quality. This video transmitter has all channels in TV UHF band from CH 14 - CH 69 UHF. It is easy to change the channel with dip-switches.
Dimensions: 2.75 " X 1.5 " X 0.75 ".
Audio channel is available on request, $100.00 extra.

Model IGX-68 /HR is with Hirosi DC power connector.
IGX-68

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
HIGH QUALITY VIDEO SENDERS FOR FILM AND TV PRODUCTION
- DISCONTINUED ITEM, PLEASE ORDER SPX-68V
SDX-1
Model: SPX-68 TM
Model: SPX-30 AM
Model: SPX-59 C
Price: call

Model: M-806
Price: $ 399.00 USD
Model: M-806B
Price: $ 429.00 USD

FIND OUT WHY PROFESSIONALS LOVE THIS UNIT
This is a High power UHF Steadicam Video sender for any TV channel from CH 65 UHF to CH 69 UHF Air TV band. This video sender is designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market! Range is up to 3000 ft line-of-sight using our tuner M-806 and High-gain antennas on both ends, and app. 1500 ft with a rubber -ducky antenna line-of-sight. This video sender has excellent color picture quality. It is built in a solid metal box and the unit measures: 3.9" X 1.9" X 0.8". It is easy to change the channel. Any TV set or VCR tuned at CH 65 - CH 69 UHF can receive the picture. This transmitter is suitable for any country or any TV system! Power supply is 12 V battery pack or Anton - Bauer battery 14.6 V. This unit uses a standard 2.1 mm power plug.
Dimensions: 3.9 " X 1.9 " X0.8 ".

SPX-68 TM video input BNC connector
(Tunable TV channels from CH 65- 69 UHF)
SPX-69 TM video input RCA connector
(Tunable TV channels from CH 65- 69 UHF)
SPX-69 G  new model with Lemo conn.
(Tunable TV channels from CH 65- 69 UHF)
SPX-30 AM (CH 30 UHF 567.2 MHz)
SPX-59 C (CH 59 CABLE 433.2 MHz)

MORE INFO PLEASE REFER TO TV CHANNELS LIST IN NORTH AMERICA
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
SMALL MONITOR FOR ALL VIDEO RECEIVERS
M-169
Model: M-169
Price: $ 225.00 USD


This small monitor 4.3" has two different formats including 16:9 option. It works from 9-14VDC.

Dimensions: 4.8 " X 3.0 " X 0.65 ", 4.3 "Screen

Note: No Receiver, Monitor Only.






HIGH POWER VIDEO SENDER SPX- 68V
SDX-22LP
Model: SPX-68V
Price: call

The newest Medium power UHF Video transmitter designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market. Range is up to 600 ft line-of-sight under ideal conditions. This transmitter has excellent color picture quality. This video transmitter has all UHF channels from CH14-CH69. This video transmitter is available in PAL.
Dimensions: 3.9 " X 1.9 " X 0.8 ".

Channel Setting Sample

SDX-22LP

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT

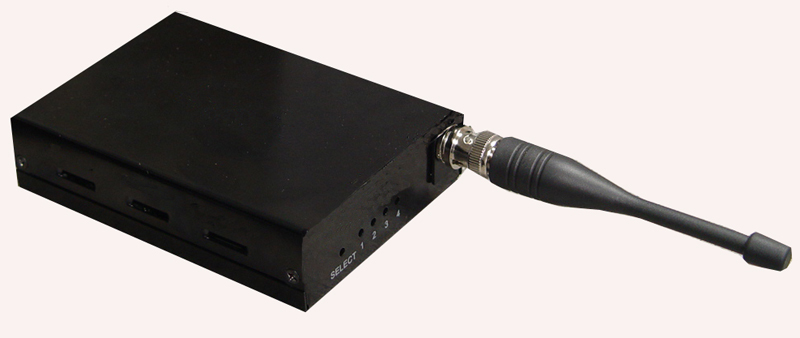

HIGH POWER VIDEO SENDER SPX- SERIES
SPX-50XX
Model: SPX-30A
   for CH 30 UHF AIR
Model: SPX-50/XXU
Price: call

This is a High power UHF Video transmitter designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market. Range is up to 1500 ft line-of-sight under ideal conditions. This transmitter has excellent color picture quality! Size: 2.2" X 0.8" X 1.2". Please choose desired channel.
Dimensions: 2.2 " X 1.2 " X 0.8 ".

Model: SPX-50/59C cable CH 59, frequency 433.25 MHz
Model: SPX-50/15U CH 15 UHF, frequency 477.25 MHz
Model: SPX-50/17U CH 17 UHF, frequency 489.25 MHz
Model: SPX-50/18U CH 18 UHF, frequency 495.25 MHz
Model: SPX-50/20U CH 20 UHF, frequency 507.25 MHz
Model: SPX-50/22U CH 22 UHF, frequency 519.25 MHz
Model: SPX-50/24U CH 24 UHF, frequency 531.25 MHz
Model: SPX-50/26U CH 26 UHF, frequency 543.25 MHz
Model: SPX-50/28U CH 28 UHF, frequency 555.25 MHz
Model: SPX-50/30U CH 30 UHF, frequency 567.25 MHz
Model: SPX-50/32U CH 32 UHF, frequency 579.25 MHz
Model: SPX-50/34U CH 34 UHF, frequency 591.25 MHz

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
MEDIUM POWER VIDEO SENDERS MX-50 SERIES
MX-50XX
Model: MX-50/59C
Price: Call
Model: MX-50/XXU
Price: Call

RF-links.com. introduces a small Video senders for TV production and Film. Model MX-50 has 50 mW RF power and it is excellent low cost solution for Steadicam operators. Matching antenna is included. This unit is available in many different TV UHF channels.
Dimensions: 2.2"x 1.5"x 0.8".

Model: MX-50/59C cable CH 59, frequency 433.25 MHz
Model: MX-50/15U CH 15 UHF, frequency 477.25 MHz
Model: MX-50/17U CH 17 UHF, frequency 489.25 MHz
Model: MX-50/18U CH 18 UHF, frequency 495.25 MHz
Model: MX-50/20U CH 20 UHF, frequency 507.25 MHz
Model: MX-50/22U CH 22 UHF, frequency 519.25 MHz
Model: MX-50/24U CH 24 UHF, frequency 531.25 MHz
Model: MX-50/26U CH 26 UHF, frequency 543.25 MHz
Model: MX-50/28U CH 28 UHF, frequency 555.25 MHz
Model: MX-50/30U CH 30 UHF, frequency 567.25 MHz
Model: MX-50/32U CH 32 UHF, frequency 579.25 MHz
Model: MX-50/34U CH 34 UHF, frequency 591.25 MHz

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
MEDIUM POWER VIDEO SENDER MX-50/65T WITH ADJUSTABLE UHF CHANNELS 65-69
MX-6000
Model: MX-50/65T
Price: Call

This transmitter is designed for steadicam users or professionals. It is adjustable from CH 65-69 AIR in UHF TV band. This little transmitter is just amazing. It will give you a broadcast quality picture up to 100 ft under ideal conditions! Recommended receiver is M-806. A special matching antenna for 790 MHz is included.
Dimensions :2.2 " X 1.5 " X 0.8 ".

MORE INFO
MATCHING RECEIVERS
ANTENNAS & ACCESSORIES
CONTACT
LOW POWER VIDEO SENDER CH-68A WITH ADJUSTABLE CHANNELS
MX-3000
Model: CH-68A
Model: CH-69A
Price: Call

This transmitter is designed for experiments or video-surveillance. It uses a very stable oscillator for UHF TV channels from CH 65-69 AIR. This little transmitter is just amazing. It will give you a broadcast quality picture up to 100 ft under ideal conditions! This transmitter is adjustable from CH 65- CH 69 UHF AIR.
Dimensions: 0.8 " X 0.6 " X 0.2 ".

MORE INFO
MATCHING RECEIVERS
CONTACT

SMALLEST VIDEO TRANSMITTER CH 30 UHF
MX-3000B
Model: CH-30A
Price: Call

This transmitter is designed for experiments or video-surveillance. It uses a fundamental oscillator frequency for broadcast TV CH 30 UHF. This little transmitter is just amazing. It will give you a broadcast quality picture up to 600 ft under ideal conditions! The transmitter is fully crystal controlled!
Dimensions: 0.8 " X 0.6 " X 0.2 ".

MORE INFO
MATCHING RECEIVERS
CONTACT

HIGH DEFINITION MICROWAVE LINK 5400 MHz
MX-3000B
Model: HD-5400
Price: call

This system using a high security encoding system that cannot be intercepted. Transmitter and receiver are matched pair and they are in special "link" configuration protected by encryption for exceptional protection. The transmitters converts analog video input into high-quality digital MPEG-4 stream. Both, transmitter and receiver come with component video input and output RCA connectors for high definition signal 1080i. This system is available for rent. Please call us for more info.
Dimensions: 7.5 " X 7.5 " X 1.5 ".

MORE INFO
CONTACT
