LABORATORY AMPLIFIER 2 W WIDEBAND FROM 40 MHz - 1600 MHz MOBILE UNIT
Model: ZHM-4016/2 Price: Call
The new professional wideband 2 W amplifier that requires minimum driving input of 10 dBm for the maximum of 2 W RF power output. It is broadband in 40 MHz - 1600 MHz and doesn't require any tuning or adjusting. Power supply is 24 V/ 0.55 A. Gain is 24 dB. SMA connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
LABORATORY AMPLIFIER 2 W WIDEBAND FROM 40 MHz - 1600 MHz MOBILE UNIT
Model: ZHM-4016/2B Price: Call
The new professional wideband 2 W amplifier that requires minimum driving input of 10 dBm for the maximum of 2 W RF power output. It is broadband in 40 MHz - 1600 MHz and doesn't require any tuning or adjusting. Power supply is 24 V/ 0.55 A. Gain is 24 dB. SMA connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 3.22 " X 2.44 " X 0.94 ".
RF UHF LINEAR wideband AMPLIFIER 0.3 W 40MHz-1220 mHz
Model: AMP-4010/03 Price: call
This is a high quality Professional UHF TV linear Wideband amplifier module broadband from 40 MHz- 1220 MHz. This amplifier needs only 0 dBm RF power for 0.3W output. Power supply requires DC voltage 24 V /0.38 A. Extremely linear this amplifier has very low noise (<4dB). It is ideal as an exciter for high power TV stages and digital applications. Recommended for all Digital VHF-UHF exciters with -10dBm RF output or less. Gain is 29.5 dB. Warranty one year is included.
Dimensions : 3.25 " X 2.5 " X 0.8 ".
This is a high quality Professional UHF TV linear Wideband amplifier module broadband from 40 MHz- 860 MHz. This amplifier needs only 0 dBm RF power for 0.5W output. Power supply requires DC voltage 24 V /0.38 A. Extremely linear this amplifier has very low noise (<4dB). It is ideal as an exciter for high power TV stages and digital applications. Recommended for all Digital VHF-UHF exciters with -10dBm RF output or less. Gain is over 34 dB. Warranty one year is included.
Dimensions : 3.25 " X 2.5 " X 0.8 ".
This is a high quality Professional UHF TV linear amplifier module broadband from 68 MHz- 90 MHz. This amplifier needs only 10-30 mW RF power for 7W output. Power supply requires DC voltage 12 V /0.8 A. It is ideal as an exciter for high power TV stages and digital applications. Warranty one year is included. This amplifier must be installed on a heat sink (not included).
Dimensions : 3.25 " X 2.5 " X 0.8 ". MIL Grade product.
This is a high quality Professional UHF TV linear amplifier module broadband from 135 MHz- 175 MHz. This amplifier needs only 10-33 mW RF power for 7W output. Power supply requires DC voltage 12 V /0.8 A. It is ideal as an exciter for high power TV stages and digital applications. Warranty one year is included. This amplifier must be installed on a heat sink (not included).
Dimensions : 3.25 " X 2.5 " X 0.8 ". MIL Grade product.
This is a high quality Professional VHF TV linear amplifier module broadband from 200 MHz- 300 MHz. This amplifier needs only 10-30 mW RF power for 7 W output. Power supply requires DC voltage 12 V /1.5 A. It is ideal as an exciter for high power TV stages and digital applications. Warranty one year is included. This amplifier must be installed on a heat sink (not included).
Dimensions : 3.25 " X 2.5 " X 0.8 ". MIL Grade product.
This is a high quality Professional VHF TV linear amplifier module broadband from 330 MHz- 400 MHz. This amplifier needs only 10-30 mW RF power for 7 W output. Power supply requires DC voltage 12 V /1.5 A. It is ideal as an exciter for high power TV stages and digital applications. Warranty one year is included. This amplifier must be installed on a heat sink (not included).
Dimensions : 3.25 " X 2.5 " X 0.8 ". MIL Grade product.
This is a high quality Professional VHF TV linear amplifier module broadband from 350 MHz- 520 MHz. This amplifier needs only 5-25 mW RF power for 7 W output. Power supply requires DC voltage 12 V /1.6 A. It is ideal as an exciter for high power TV stages and digital applications. Warranty one year is included. This amplifier must be installed on a heat sink (not included).
Dimensions : 3.25 " X 2.5 " X 0.8 ". MIL Grade product.
This is a high quality Professional UHF TV linear amplifier module broadband from 400 MHz- 470 MHz. This amplifier needs only 10-30 mW RF power for 7W output. Power supply requires DC voltage 12 V /0.8 A. It is ideal as an exciter for high power TV stages and digital applications. Warranty one year is included. This amplifier must be installed on a heat sink (not included).
Dimensions : 3.25 " X 2.5 " X 0.8 ". MIL Grade product.
The new linear amplifier for UHF band is excellent design made for special applications, lab testing, digital and analog RF and TV applications. This module requires 12 VDC / 1A. The minimum driving input is 1mW-10 mW; absolute maximum RF input is 50 mW. Rated RF power is 2 W.
Dimensions: 3.25 " X 2.5 " X 0.8 "
The new linear amplifier for UHF band is excellent design made for special applications, lab testing, digital and analog RF and TV applications. This amplifier requires 12 VDC / 1.5 A. The minimum driving input is 10 mW; required RF input is 10-20 mW. Rated output RF power is 5 W.
Dimensions:3.25 " X 2.45 " X 0.9 "
The new linear amplifier for UHF band is excellent design made for special applications, lab testing, digital and analog RF and TV applications. This module requires 12 VDC / 1.5 A. The minimum driving input is 25-50 mW. Rated output RF power is 7 W.
Dimensions: 3.25 " X 2.5 " X 0.8 "
WIDEBAND HIGH POWER LINEAR AMPLIFIER 10 MHz – 1000 MHz 12 W
Model: AMP-10-100BX Price: Call
The new linear amplifier for UHF band based on Freescale IC is an excellent design made for special applications, lab testing, digital and analog RF and TV applications. Amplifier model AMP-10-100 covers entire band VHF-UHF from 10 MHz- 1 GHz. This module requires 15-24 VDC / 1.2 A. The minimum driving input is 10 mW; required RF input is 25- 50 mW. Rated output RF power is 15 W max.
Dimensions: 3.25 " X 2.45 " X 0.9 ".
WIDEBAND HIGH POWER LINEAR AMPLIFIER 30 MHz –2.5 GHz 9W
Model: WFL-25BX Price: call
The new wideband linear amplifier for UHF band 30 MHz-2.5 GHz based on one chip IC is an excellent design made for special applications, lab testing, digital and analog RF and TV applications. Amplifier model WFL-25 covers entire band VHF-UHF from 30 MHz- 2.5 GHz. This amplifier requires 28 VDC/ 0.5 A supply. The minimum driving input is 30 dBm; required RF input is 32 dBm. Rated output RF power is 9 W.
Dimensions: 3.25 " X 2.5 " X 0.8 ".
The new linear amplifier for UHF band is excellent design made for special applications, lab testing, digital and analog RF and TV applications. This amplifier works in wideband frequency range from 45 MHz- 1000 MHz It requires 12 VDC / 1.2 A. The minimum driving input is 1 mW; absolute maximum RF input is 50 mW. Rated RF power is over 2 W. It comes with BNC input / output connectors. Excellent for special Military wideband applications.
Dimensions: 6.0" X 4.0" X 2.0"
LABORATORY HIGH POWER AMPLIFIER 7 W WIDEBAND FROM 60 MHz - 90 MHz MOBILE UNIT
Model: ZH-6090 Price: call
This is a tested high quality professional 7 W amplifier that requires minimum driving input of 30 m W for the maximum of 7 W RF power output. It is broadband in 60 MHz - 90 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain 23 dB. SMA connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
HIGH POWER AMPLIFIER 30 W WIDEBAND FROM 60 MHz - 90 MHz MOBILE UNIT
Model: ZH-6090/H Price: Call
This is a tested high quality professional 30 W RF amplifier that requires minimum driving input of 50 m W for the maximum of 30 W RF power output. It is broadband in 60 MHz- 90 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 7 A. Gain 28 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
HIGH POWER AMPLIFIER VHF BAND
1 MHz – 30 MHz 200 W RF POWER
Model: ZH-0114/200 Price: Call
This extreme rugged HIGH GAIN power amplifier has been designed to cover the entire HF band from 1 to 30 MHz, offering unsurpassed solution for HF power amplifier designs. Designed for CW applications, the ZH-0114/200 is equipped with the latest generation of LDMOS super rugged power devices for extreme reliability required by military tactical and heavy duty civil RF equipment.
Dimensions: 11.0 " X 4.1 " X 3.4 ".
HIGH POWER AMPLIFIER FOR VHF BAND
170 MHz – 250 MHz
400W CW
Model: ZHG-1725/400 Price: Call
Designed for analog and digital TV transposers and transmitters, this amplifier incorporates
microstrip technology and push-pull TETRAFET to enhance ruggedness and reliability.
RF POWER output is 400W CW, required input 2-3 W
Dimensions: 11.0 " X 4.1 " X 3.4 ".
HIGH POWER AMPLIFIER 60 W WIDEBAND FROM 90 MHz - 250 MHz MOBILE UNIT
Model: ZHS90-250/60 Price: Call
Designed for Testing, labs and Special purposes, transmitters, this amplifier incorporates microstrip technology and LDMOS device to enhance ruggedness and reliability.
Dimensions: 6.0 " X 4.0 " X 3.0 ".
HIGH POWER AMPLIFIER 100 W WIDEBAND FROM 50 MHz - 300 MHz MOBILE UNIT
Model: ZHS50-300/100 Price: Call
Designed for Testing, labs and Special purposes, transmitters, this amplifier incorporates microstrip technology and LDMOS device to enhance ruggedness and reliability.
Dimensions: 6.0 " X 4.0 " X 3.0 ".
HIGH POWER AMPLIFIER 250 W WIDEBAND FROM 50 MHz - 300 MHz MOBILE UNIT
Model: ZHS50-300/250 Price: Call
Designed for Testing, labs and Special purposes, transmitters, this amplifier incorporates microstrip technology and LDMOS device to enhance ruggedness and reliability.
Dimensions: 6.0 " X 4.0 " X 3.0 ".
HIGH GAIN TV UHF LINEAR AMPLIFIER 60 W IN CLASS A MOBILE UNIT
Model: ZHS-4047-60 Price: Call
EXCELLENT DRIVING UHF AMPLIFIER FOR 400 MHz-470 MHz
This is a high quality professional 60 W TV linear amplifier that requires minimum driving input of 25 mW for 60 W RF output power / 12.6 V DC. This TV linear amplifier works from 400 MHz -470 MHz and doesn't require any tuning or adjusting. This amplifier has built-in UHF filter. Power supply is 12 V - 14 V / 8 A. Gain is 27 dB. Input / Output 50 ohms impedance. It is excellent for low power TV stages in UHF band. It comes with N type of connectors.
HIGH GAIN TV UHF LINEAR AMPLIFIER 60 W IN CLASS AB MOBILE UNIT
Model: ZHS-4053-60 Price: Call
EXCELLENT FOR UHF BAND 400 MHz-530 MHz
This is a high quality professional 60 W TV linear amplifier that requires minimum driving input of 35 mW for 60 W RF output power / 12.6 V DC. This TV linear amplifier works from 400 MHz -530 MHz and doesn't require any tuning or adjusting. This amplifier has built-in UHF filter. Power supply is 12 V - 14 V / 8 A. Gain is 27 dB. Input / Output 50 ohms impedance. It is excellent for low power TV stages in UHF band. It comes with N type of connectors.
HIGH GAIN TV UHF LINEAR AMPLIFIER 40 W IN CLASS AB MOBILE UNIT
Model: ZHS-0509-40 Price: Call
EXCELLENT FOR VHF BAND 50 MHz-90 MHz
This is a high quality professional 40 W TV linear amplifier that requires minimum driving input of 35 mW for 40 W RF output power / 12.6 V DC. This TV linear amplifier works from 50 MHz - 90 MHz and doesn't require any tuning or adjusting. This amplifier has built-in UHF filter. Power supply is 12 V - 14 V / 6 A. Gain is 26 dB. Input / Output 50 ohms impedance. It is excellent for low power TV stages in UHF band. It comes with N type of connectors.
HIGH GAIN TV UHF LINEAR AMPLIFIER 40 W IN CLASS AB MOBILE UNIT
Model: ZHS-1723-40 Price: Call
EXCELLENT FOR VHF BAND 170 MHz-230 MHz
This is a high quality professional 40 W TV linear amplifier that requires minimum driving input of 35 mW for 40 W RF output power / 12.6 V DC. This TV linear amplifier works from 170 MHz - 230 MHz and doesn't require any tuning or adjusting. This amplifier has built-in UHF filter. Power supply is 12 V - 14 V / 7 A. Gain is 27 dB. Input / Output 50 ohms impedance. It is excellent for low power TV stages in UHF band. It comes with N type of connectors.
HIGH GAIN TV UHF LINEAR AMPLIFIER 20 W IN CLASS AB MOBILE UNIT
Model: ZHS-1214-20 Price: Call
EXCELLENT FOR UHF TRANSMITTERS 1.2 GHz -1.32 GHz
This is a high quality professional 20 W TV linear amplifier that requires minimum driving input of 200 mW for 20 W RF output power / 12.6 V DC. This TV linear amplifier works from 1,200 MHz - 1,350 MHz and doesn't require any tuning or adjusting. This amplifier has built-in UHF filter. Power supply is 12 V - 14 V / 6-7 A. Gain is 24 dB. Input / Output 50 ohms impedance. It is excellent for low power TV stages in UHF band. It comes with N type of connectors.
HIGH GAIN TV vHF LINEAR AMPLIFIER 300 W IN CLASS A MOBILE UNIT
Model: ZHM100-250/300 Price: Call
EXCELLENT FOR 230 MHz BAND
This is our new designed Professional VHF RF amplifier 300 W RF power for 230 MHz band. This amplifier needs 1.5 W-2 W RF power for a full 300 W output/50 ohms in CW. DC Power 48 V / 6.5 A. Extremely linear this amplifier has been made for the labs or special applications.
Dimensions: 11.0 " X 4.1 " X 3.4 ".
HIGH GAIN TV UHF LINEAR AMPLIFIER 60 W IN CLASS A MOBILE UNIT
Model: AMP-4754H Price: Call
EXCELLENT FOR UHF TV CHANNELS 14-26 NTSC
This is a highest quality Professional UHF TV linear amplifier 60 W RF power in A class. It is fully broadband for all UHF channels from 470 MHz- 540 MHz. This amplifier needs 15-50 mW RF power for a full 60 W output/50 ohms in CW. Low intermodulation distortion makes this unit perfect for digital or analog broadcast television. Power supply is 12.6 V / 8 A. Extremely linear this amplifier has been made for small TV stations and studios. It is ideal as an exciter for a high power TV stages. An extra cooling required
Dimensions: 6.0 " X 4.0 " X 2.0 ".
HIGH GAIN UHF LINEAR AMPLIFIER 750 MHz/45 W IN CLASS A FOR PUBLIC SAFETY BAND
Model: AMP-750/45 Price: call
EXCELLENT FOR EMERGENCY UHF SERVICES OR TV APPLICATIONS
This is a high quality Professional UHF TV linear amplifier 45 W RF power in A class. It is fully broadband for all UHF channels from 750 MHz- 890 MHz. This amplifier needs 15 mW RF power for a full 45 W output/50 ohms. Low intermodulation distortion makes this unit perfect for digital or analog broadcast television. Power supply is 12.6 V / 6 A. It is ideal as an exciter for a high power TV stages. This amplifier comes assembled and tested. This amplifier must be installed on a heat sink (not included).
Dimensions: 3.25 " X 2.5 " X 0.8 ".
This is a broadband amplifier for labs or testing purposes. This amplifier is excellent for UHF band 400 MHz- 1000 MHz. The gain is over 44 dB. The maximum power is 30 W. Minimum required driving power is only 1 mW. This amplifier can be used for testing or TV applications since the linearity is excellent.
Dimensions: 3.9 " X 1.4 " X 7.0 ".

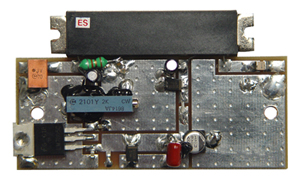

This is a high quality professional 15 W linear amplifier that requires minimum driving input of only 1 m W for the maximum of 15 W RF power output in 900 MHz range. This amplifier is linear and doesn't require any tuning or adjusting. Power supply is 12 V/ 2.6 A. Gain is 30 dB. Input / Output impedance 50 ohms.
This amplifier is great for experiments, video surveillance or mobile radio applications.
Dimensions: 3.25 " X 2.5 " X 0.8 ".
HIGH POWER AMPLIFIER 7 W WIDEBAND FROM 400 MHz - 470 MHz
Model: ZH-4047/7 Price: call
This is a tested high quality professional 7 W RF amplifier that requires minimum driving input of 10 m W for the maximum of 7 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain is 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
HIGH POWER AMPLIFIER 7 W WIDEBAND FROM 400 MHz - 470 MHz GAIN 45 dB
Model: ZH-4047/7-1 Price: call
This is a tested high quality professional 7 W RF amplifier that requires minimum driving input of 1 m W for the maximum of 7 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain is 45 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
HIGH POWER AMPLIFIER 60 W WIDEBAND FROM 400 MHz - 470 MHz
Model: ZH-4047/60
This is a tested high quality professional 60 W RF amplifier that requires minimum driving input of 30-50 mW for the maximum of 60 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. However, the power output can be adjusted on request. Power supply is 12 V/ 6.8 A. Gain is 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
HIGH POWER AMPLIFIER 60 W WIDEBAND FROM 400 MHz - 470 MHz
Model: ZH-4047/60-1 Price: call
This is a tested high quality professional 60 W RF amplifier that requires minimum driving input of 0 dBm-3 dBm for the maximum of 60 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. However, the power output can be adjusted on request. Power supply is 12 V/ 6.9 A. Gain is 38 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
HIGH POWER AMPLIFIER 20 W WIDEBAND FROM 880 MHz - 960 MHz
Model: ZH-8896/H Price: call
This is a tested high quality professional 20 W RF amplifier that requires minimum driving input of 50 m W for the maximum of 20 W RF power output. It is broadband in 880 MHz- 960 MHz and doesn't require any tuning or adjusting. The power output can be adjusted on request to the lower level. Power supply is 12 V/ 6.8 A. Gain 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
HIGH POWER AMPLIFIER 20 W WIDEBAND FROM 880 MHz - 960 MHz
Model: ZH-8896/HM Price: call
This is a tested high quality professional 20 W RF amplifier that requires minimum driving input of 50 m W for the maximum of 20 W RF power output. It is broadband in 880 MHz- 960 MHz and doesn't require any tuning or adjusting. The power output can be adjusted on request to the lower level. Power supply is 12 V/ 6.8 A. Gain 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 3 ".
A new high power UHF amplifier for 900 MHz was made for Military applications. It requires only 50 mW RF power for a full 4 W power in 900 MHz band. It is excellent for 900 MHz radios or data transmitters. Power supply is 12 V / 1.6 A. Weight is 250 grams.
Dimensions: 6.0 " X 4.0 " X 2.0"
New model AMP-960 XL is available for frequency band 890-960 MHz.
A new high power UHF amplifier for 900 MHz was made for Military applications. It requires only 20 mW RF power for a full 20 W power in 900 MHz band. It is excellent for 900 MHz radios or data transmitters. Power supply is 12 V / 4.6 A. Weight is 350 grams.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
