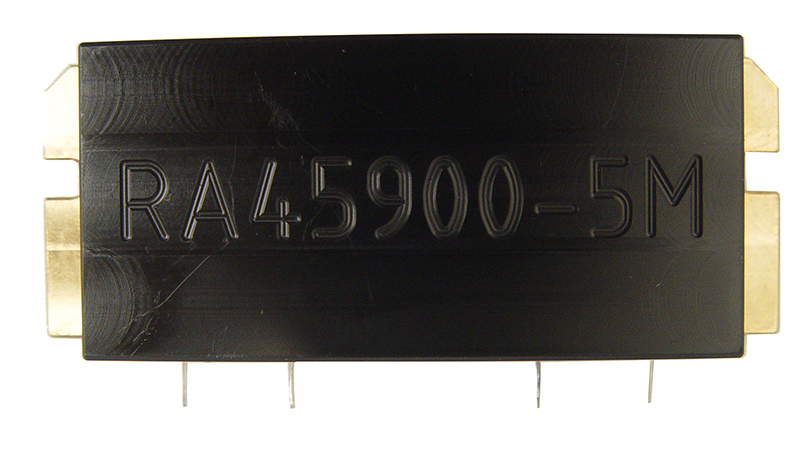

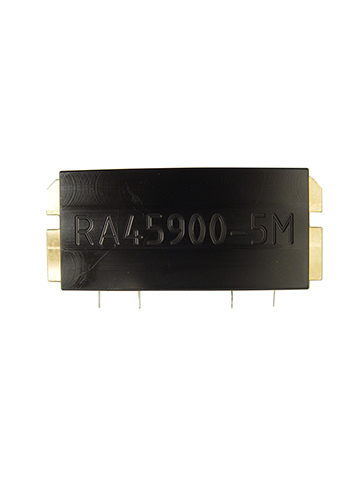

The new linear amplifier for UHF band is excellent design made for special applications, lab testing, digital and analog RF applications. This board requires 12 VDC / 1.5A. The minimum driving input is 10 mW; required RF input is 25 mW. Rated output RF power is 5 W.
Dimensions :3.2" X 1.2" X 0.2".
