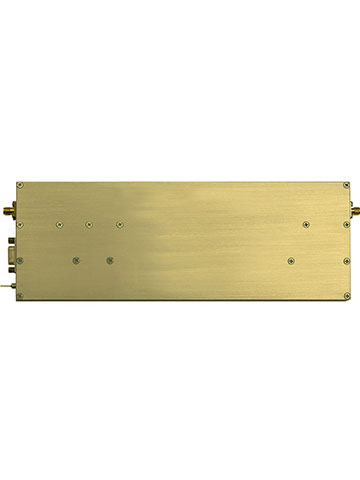

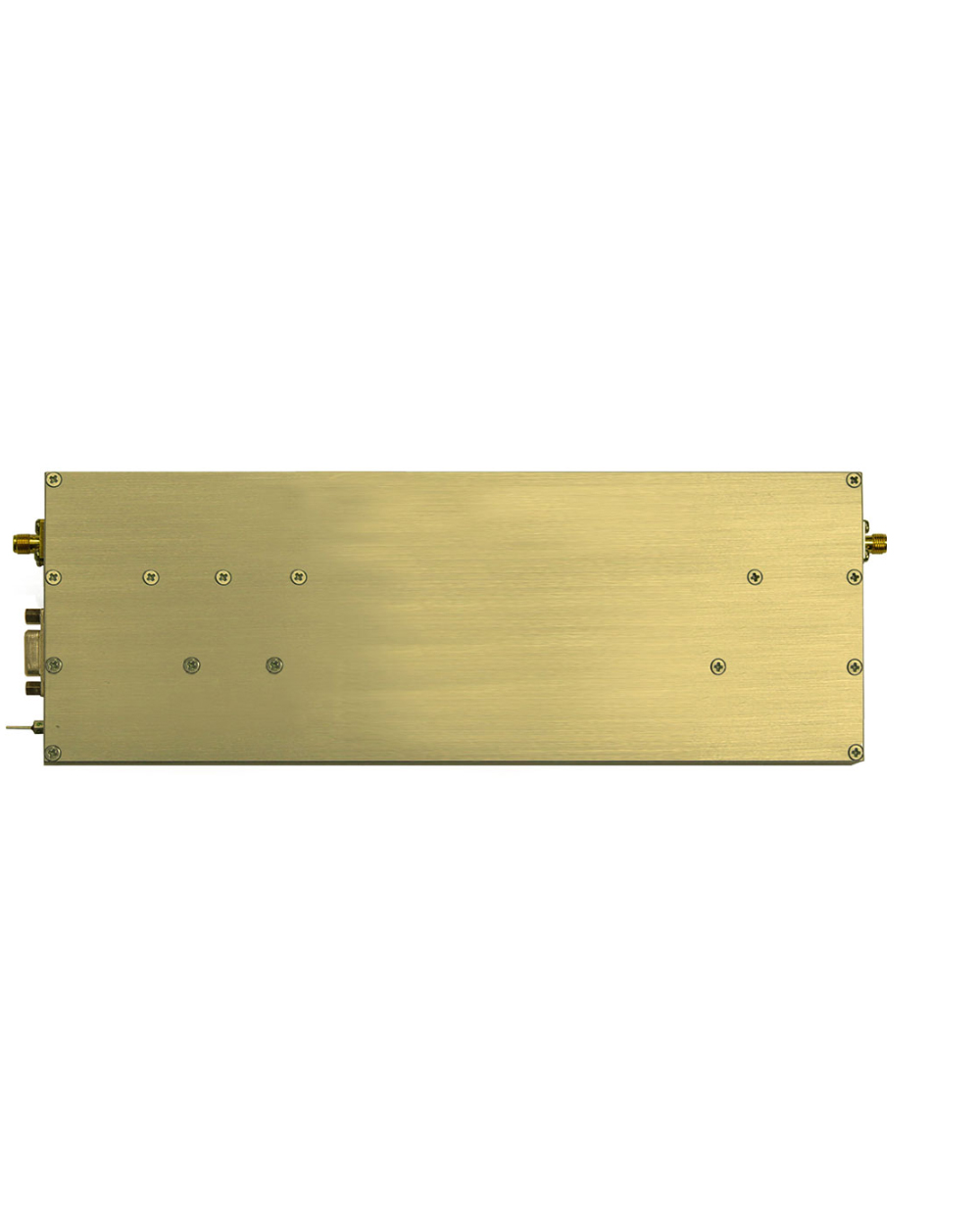

This is a medium power, super broadband RF amplifier that operates from 20 MHz to 6 GHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over an extremely large bandwidth with decent power added efficiency. It was designed for broad band communication systems platforms. This amplifier has a typical saturated output power of 5-10 watts at room temperature. Noise figure at room temperature is 10.0 dB typical. It offers a typical gain of 52 dB with a typical gain flatness of ± 4.5 dB.
