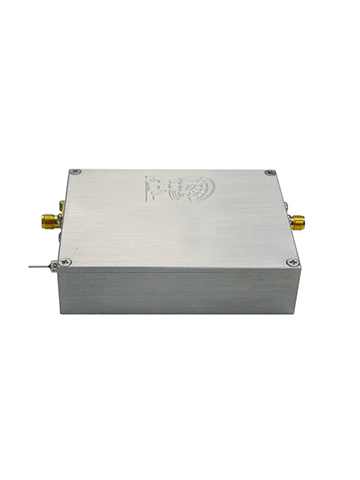

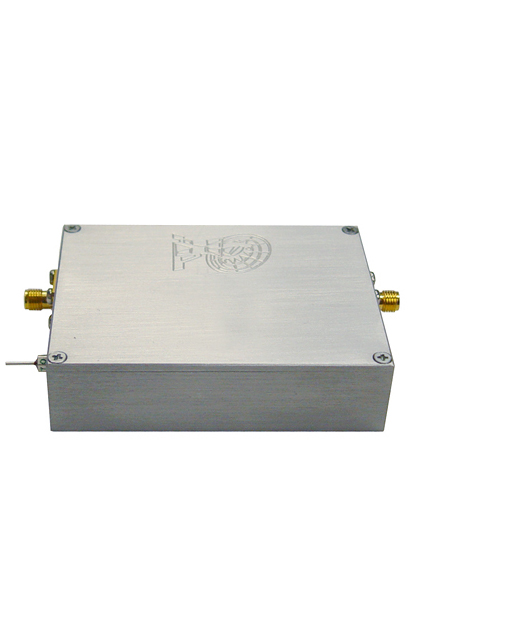

The new wideband linear amplifier for UHF band 30 MHz-2.5 GHz based on one chip IC is an excellent design made for special applications, lab testing, digital and analog RF and TV applications. Amplifier model WFL-25 covers entire band VHF-UHF from 30 MHz- 2.5 GHz. This amplifier requires 28 VDC/ 0.5 A supply. The minimum driving input is 30 dBm; required RF input is 32 dBm. Rated output RF power is 9 W.
Dimensions : 3.25 " X 2.5 " X 0.8 ".
